Anti-weed Woven Geotextile

It is made of PE or PP as the main raw material and processed by weaving process.

Width: 1-6m can be customized

Pull force: 35KN-250KN can be customized;

Gram weight: 140g-950g can be customized



Contact Now E-Mail Telephone WhatsApp
Product Details

Product specifications: gram weight 90gsm ~400gsmwidth 4~ 6 meters

Features: Light weight high strength, small elongation, good integrity, convenicnt construction; reinforcement, separation, drain

age filtration, blocking function.

Applications:

1. Water conservancy projects: (1) seawall, river embankment, river embankmenl, lake embankment standard project;(2) bermin!project, diversion irrigation project; (3) reservoir anti-seepage and reinforcement project;:(4) ) surounding the cofferdam project; (5)flood control works.

2.Highway projects: (1) soft foundation reinforcement treatent; (2) slope protection; (3) pavement anti-reflection joint structurt

layer; (4) drainage system; (5) green isolation belt.

3. Railway engineering: (1) Railway bed reinforcement project; (2) Embankment slope reinforcement layer: (3) Tunnel lining water

proof and drainage layer; (4) Geotextile drainage blind ditch.

3.Airport engineering: (1) Runway foundation reinforcement;: (2) Apron foundation and pavement structure; (3) Airport road an

drainage system.

5. Power plant engineering: (1)Nuclear power plant foundation engineering:(2) Thermal power plant ash dam proiect: (3)Hydro

power station project.

Product implementation standards:


Woven Geotextile Technical Specifications (GB/T 17690-1999)

Item

Specifications

20-15

30-22

40-28

50-35

60-42

80-56

100-70

1

Warp breaking strength (kN/m)≥

20

30

40

50

60

80

100

2

Weft breaking strength (kN/m)≥

15

22

28

35

42

56

70

3

Longitude and latitude elongation at break %≤

28

4

Trapezoidal tear strength (longitudinal force) kN≥

0.3

0.45

0.5

0.6

0.75

1.0

1.2

5

Burst strength kN≥

1.6

2.4

3.2

4.0

4.8

6.0

7.5

6

Vertical permeability coefficient, cm/s

10-1-10-4

7

Equivalent aperture / mm

0.08-0.5

8

Mass per unit area / sqm.

120

160

200

240

280

340

400

Allowable deviation value /%

±10

9

UV resistance strong retention rate /%

According to customer needs

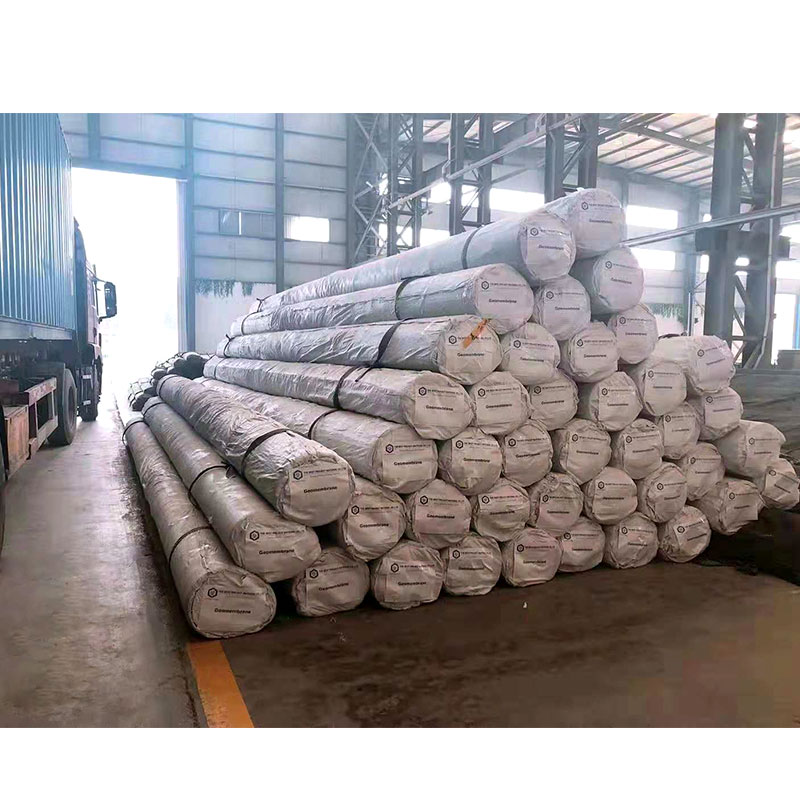

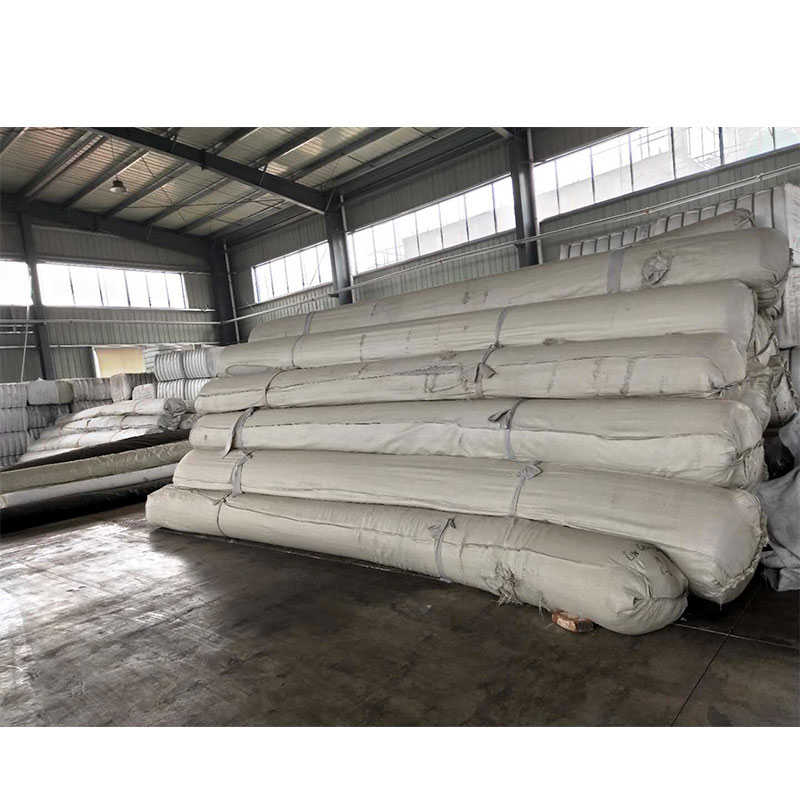

Packing of Anti-weed Woven Geotextile

Anti-weed Woven Geotextile Anti-weed Woven Geotextile

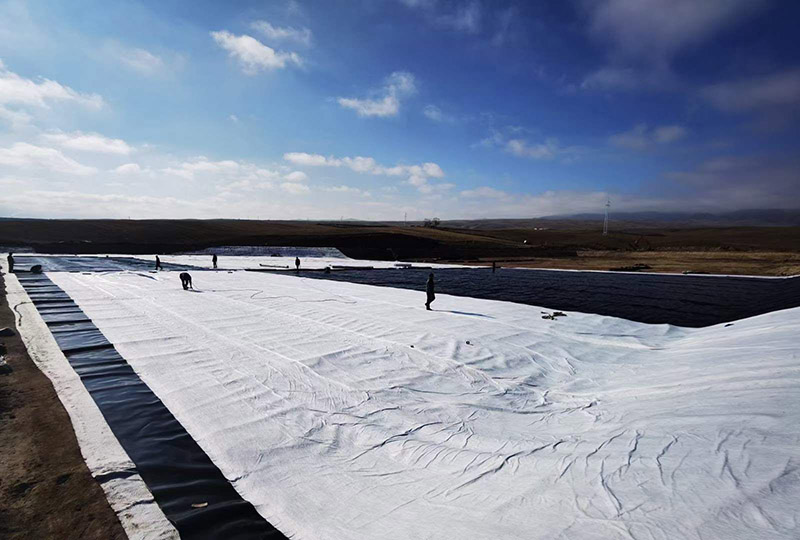

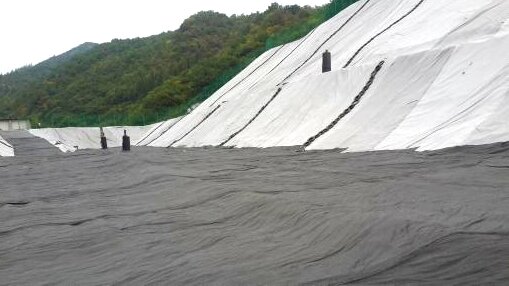

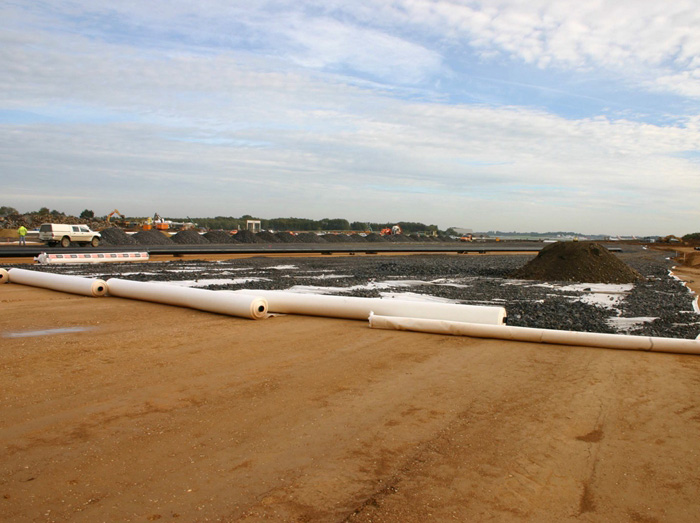

Construction of Anti-weed Woven Geotextile


Anti-weed Woven Geotextile

Anti-weed Woven Geotextile



Woven Geotextile Technical Specifications (GB/T 17690-1999)

Item

Specifications

20-15

30-22

40-28

50-35

60-42

80-56

100-70

1

Warp breaking strength (kN/m)≥

20

30

40

50

60

80

100

2

Weft breaking strength (kN/m)≥

15

22

28

35

42

56

70

3

Longitude and latitude elongation at break %≤

28

4

Trapezoidal tear strength (longitudinal force) kN≥

0.3

0.45

0.5

0.6

0.75

1.0

1.2

5

Burst strength kN≥

1.6

2.4

3.2

4.0

4.8

6.0

7.5

6

Vertical permeability coefficient, cm/s

10-1-10-4

7

Equivalent aperture / mm

0.08-0.5

8

Mass per unit area / sqm.

120

160

200

240

280

340

400

Allowable deviation value /%

±10

9

UV resistance strong retention rate /%

According to customer needs
