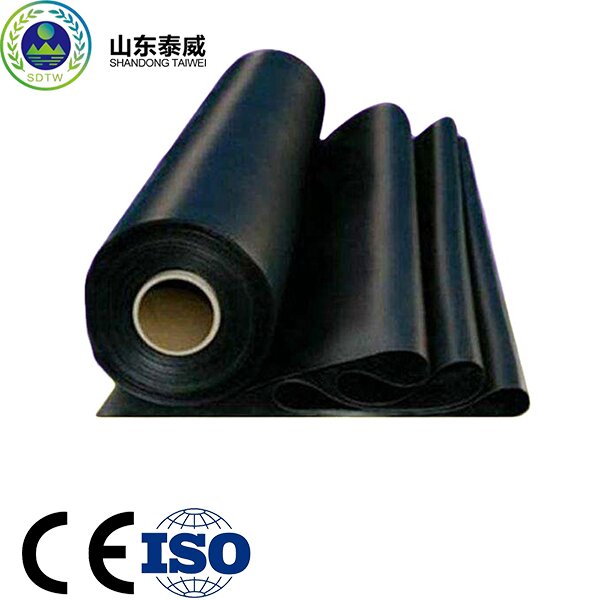

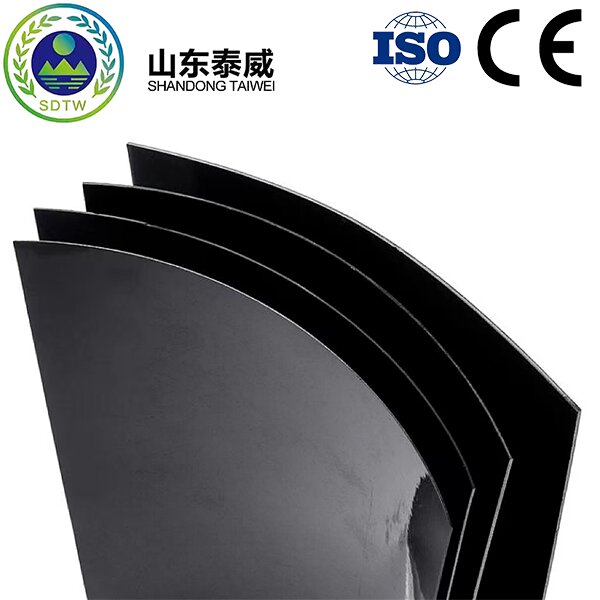

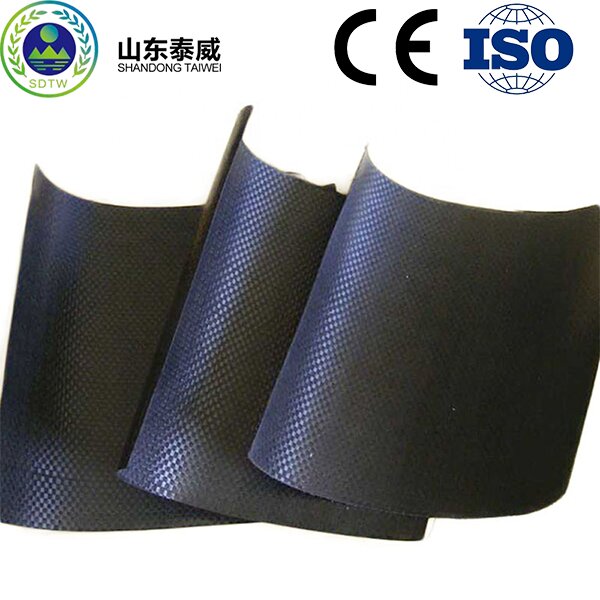

HDPE Geomembrane

High anti-seepage coefficient, good chemical stability, anti-aging performance, anti-plant root system.

Good economic efficiency, fast construction, environmental protection, and non-toxicity.


Thickness: 1.0-2.0mm; Width: 4-8 meters. Customization Available

High service temperature (-60℃ ~ +60) and long service life (50 years).

Contact Now E-Mail Telephone WhatsApp
Product Details

Cproduct specification:Thickness: 1.0-2.0mm; Width: 4-8m length according to user requirements.

Features:HDPE Geomembrane has excellent environmental stres:s crack resistance, large operating temperature (-60 +60) andlong service life (50 years).

Application: Environmental protection engineering, water conservancy geotechnical engineering. municipal engineering. landscaping. petrochemical. Mining, transportation facilities engineering, agriculture, aquaculture (fish ponds, linings of shrimp ponds, etc.)

HDPE GeomembraneHDPE Geomembrane



Product Implementation Standards: America GRI GM-13 Standard


HDPE geomembrane Technical Parameter (GRI GM13 ASTM Standard)

Spec Properties

Test
method ASTM

GMS0.5

GMS0.75

GMS1.0

GMS1.25

GMS1.5

GMS2.0

GMS2.5

Thickness

D5199

0.5mm

0.75mm

1.00mm

1 .25mm

1.50mm

2.00mm

2.50mm

Density (≥ g/cc)

D1505

0.940

0.940

0.940

0.940

0.940

0.940

0.940

Tensile Properties
(Each direction)(≥)
•   yield strength
•   break strength
•   yield elongation
•   break elongation

D6693 Type IV

8 kN/m   14 kN/m 12%    700%

11 kN/m
20 kN/m
12%
700%

15 kN/m
27 kN/m
12%
700%

18 kN/m
33 kN/m
12%    700%

22 kN/m 40 kN/m 12%    700%

29kN/m 53 KN/m 12%    700%

37kN/m 67kN/m 12%    700%

Tear Resistance (≥)

D 1004

64N

93N

125 N

156N

187N

249 N

311 N

Puncture Resistance(≥)

D 4833

160N

240N

320 N

400 N

480N

640 N

800 N

Stress Crack Resistance (≥)

D 5397

300 hr

300 hr

300 hr

300 hr

300 hr

300 hr

300 hr

Carbon Black Content

D 1603

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

Carbon Black Dispersion

D 5596

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Oxidative Induction Time(OIT)(≥)       (a)Standard OIT                  ——or——
(b)High Pressure OIT

D 3895      D 5885

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

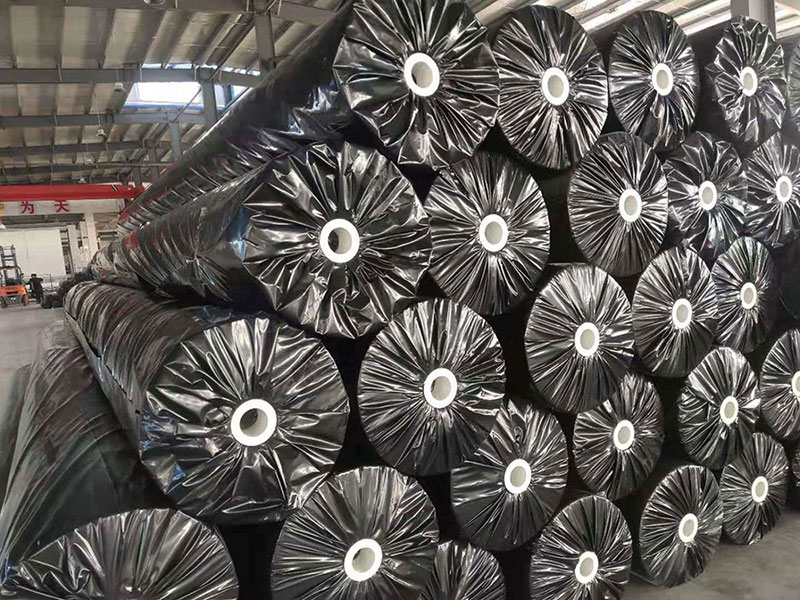

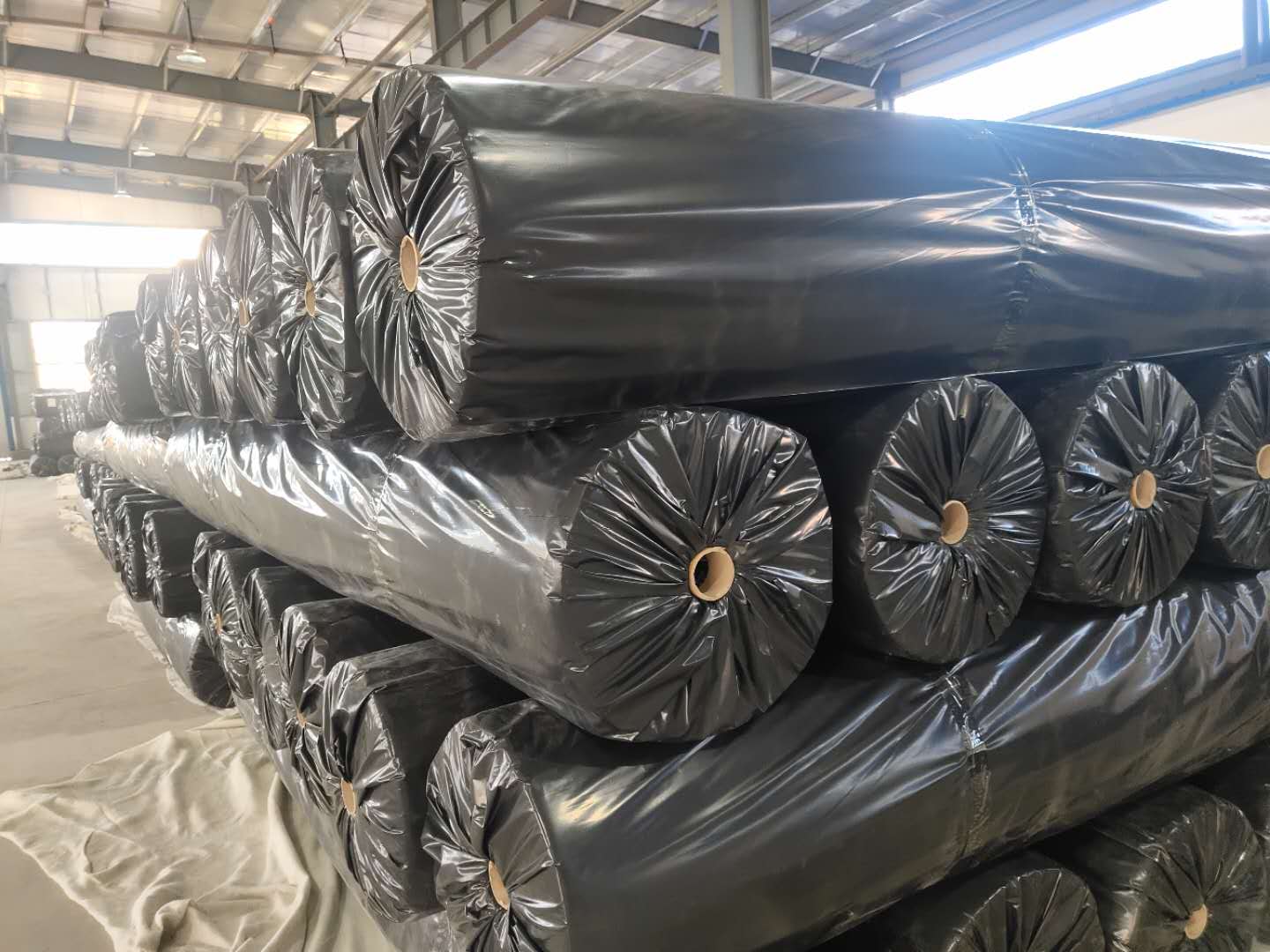

Packing of HDPE Geomembrane

HDPE Geomembrane HDPE Geomembrane

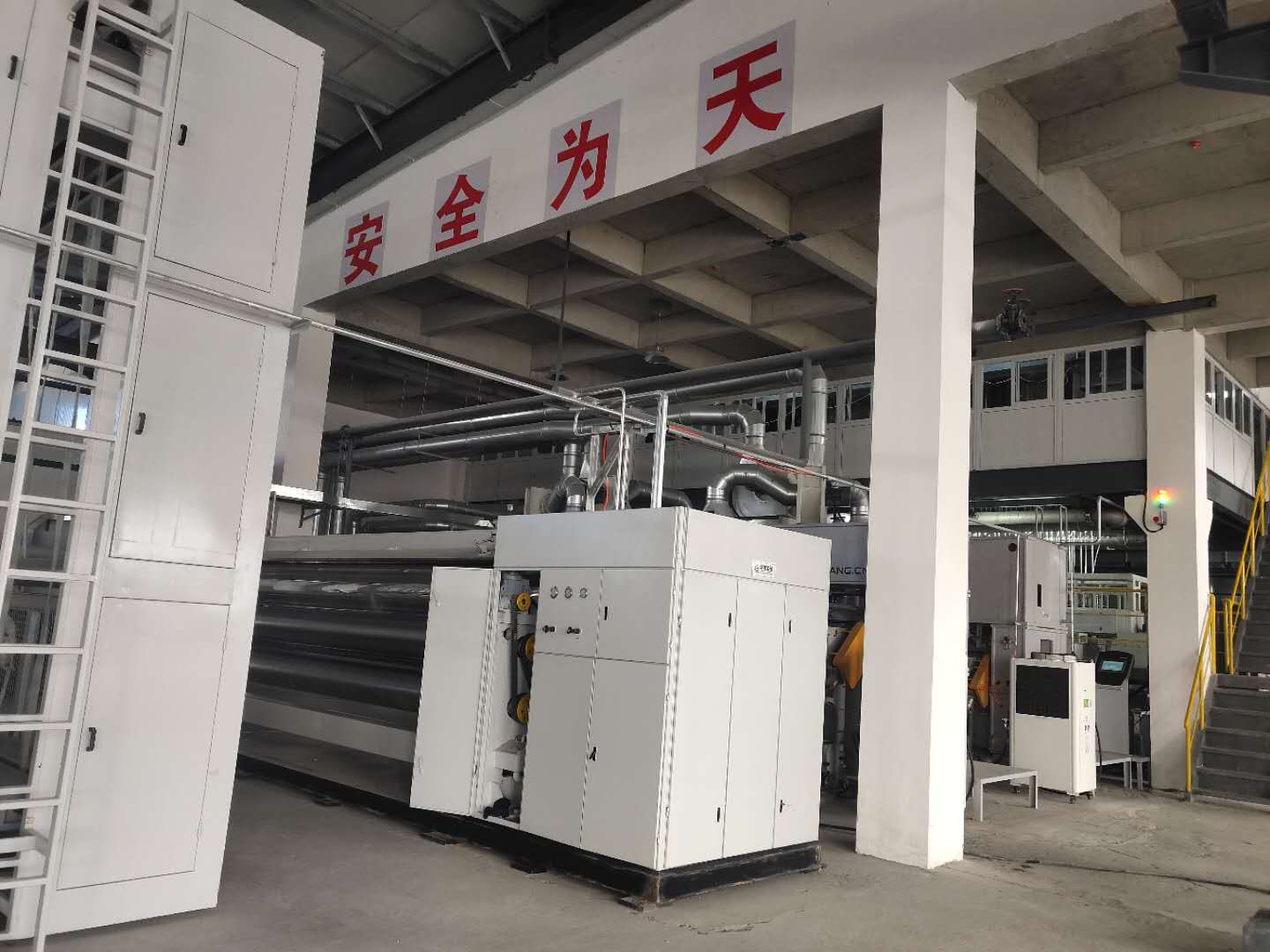

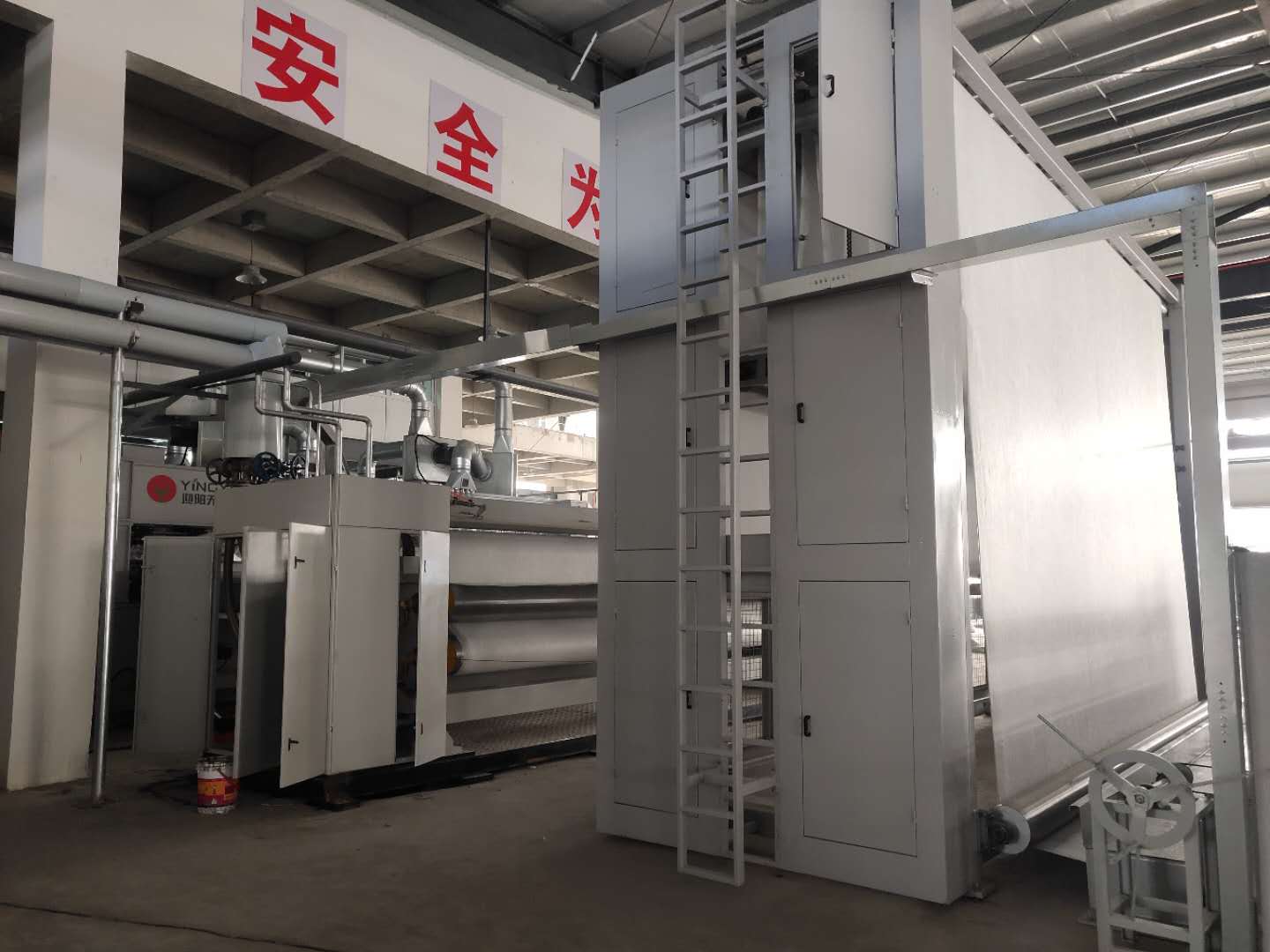

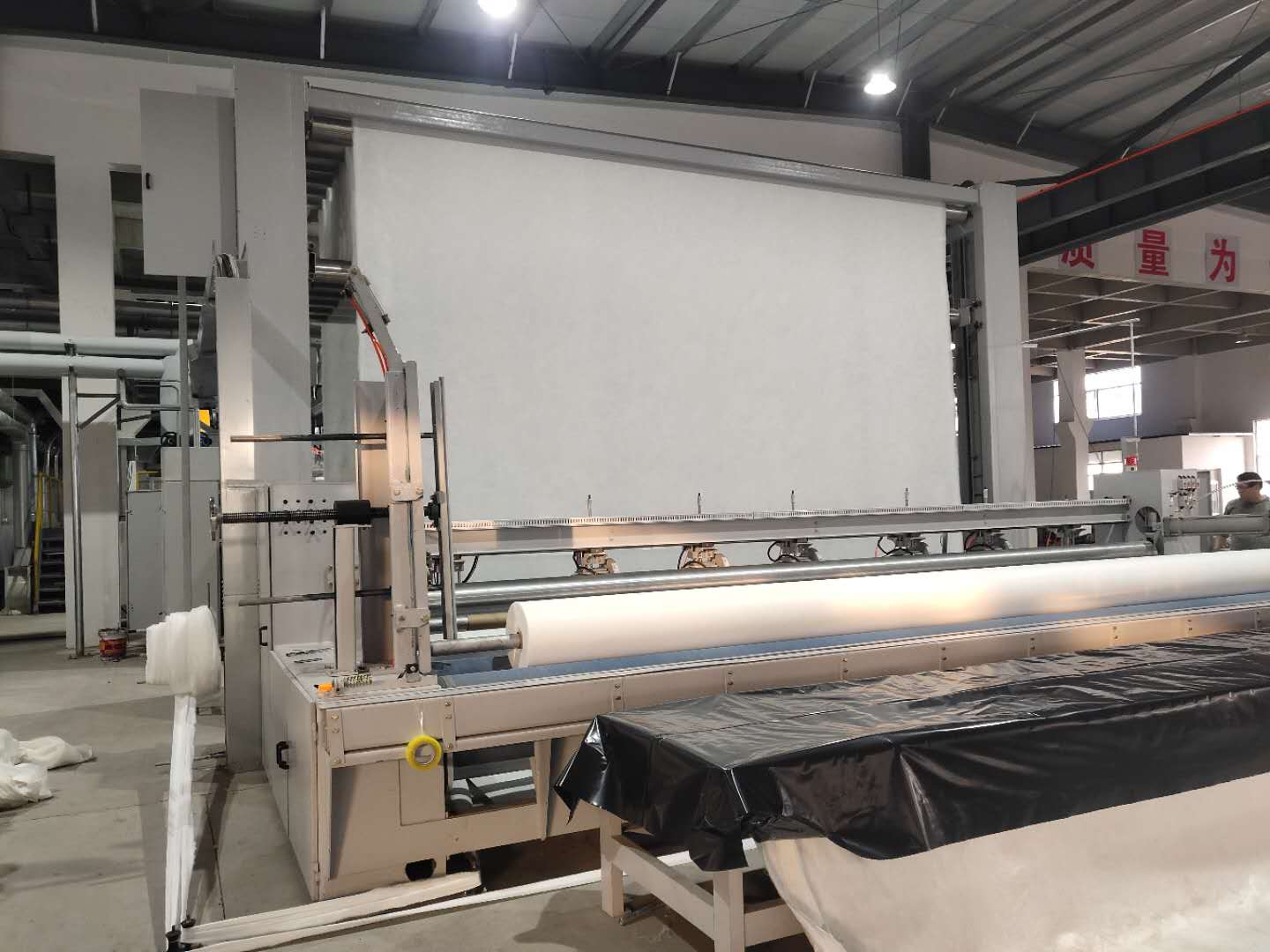

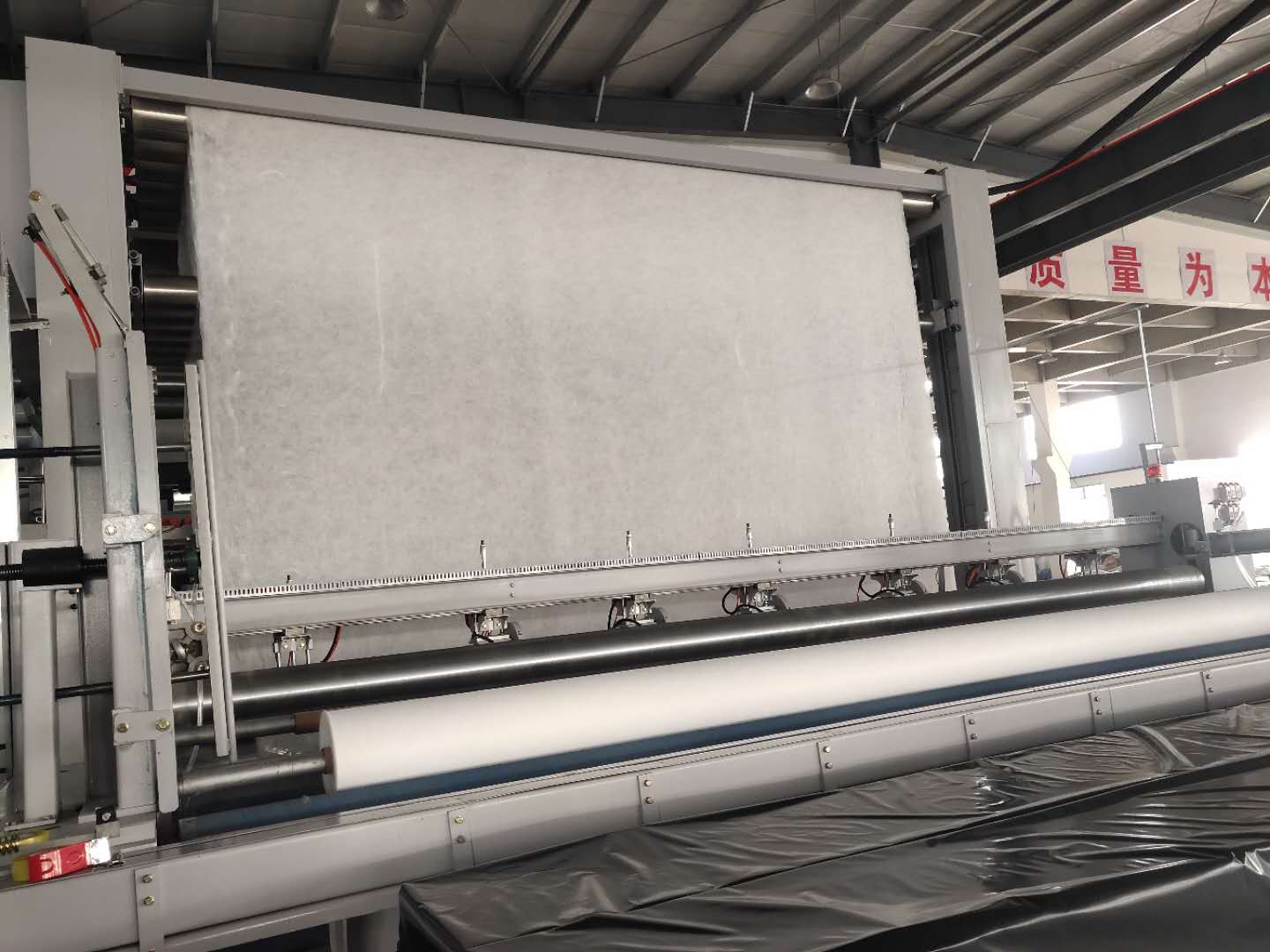

Equipment of HDPE Geomembrane

HDPE Geomembrane HDPE Geomembrane

HDPE Geomembrane HDPE Geomembrane

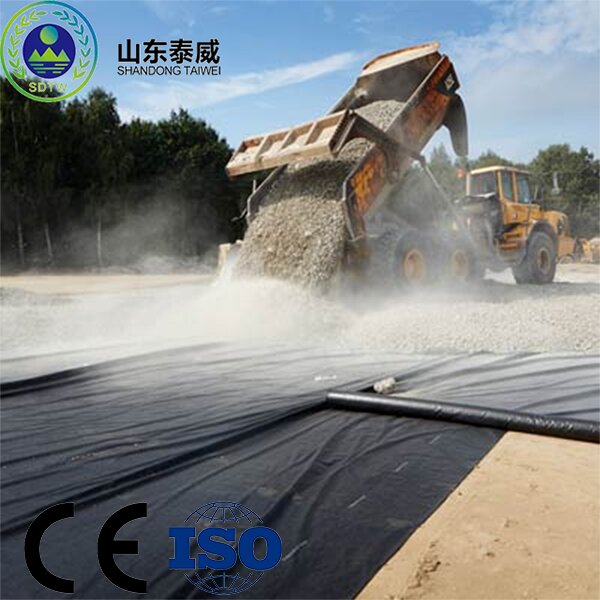

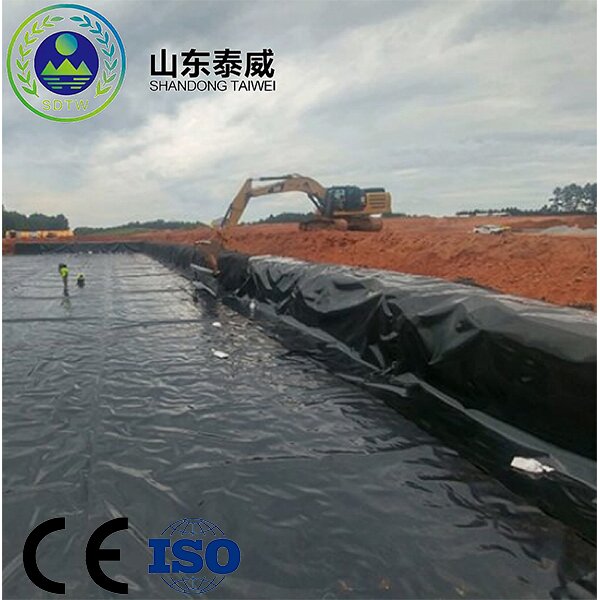

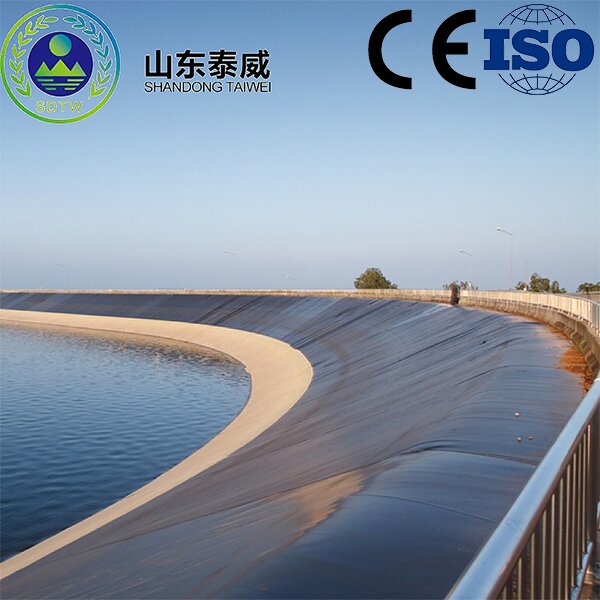

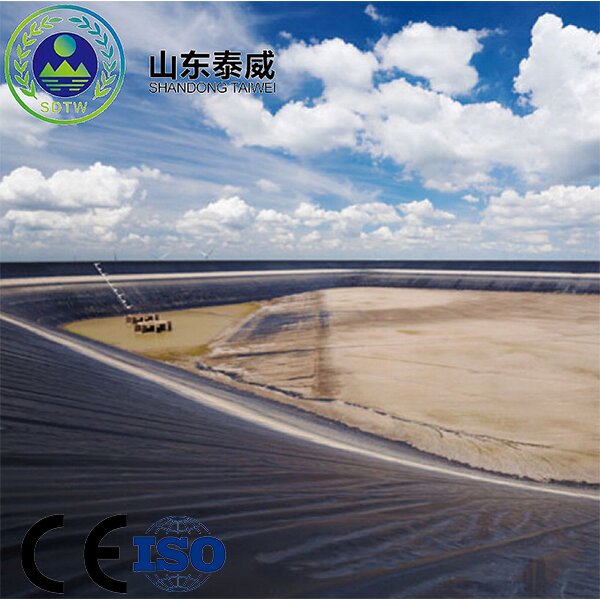

Usage Scenarios of HDPE Geomembrane

HDPE Geomembrane HDPE Geomembrane

HDPE Geomembrane HDPE Geomembrane




HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard)

Spec Properties

Test
method ASTM

GMS0.5

GMS0.75

GMS1.0

GMS1.25

GMS1.5

GMS2.0

GMS2.5

Thickness

D5199

0.5mm

0.75mm

1.00mm

1 .25mm

1.50mm

2.00mm

2.50mm

Density (≥ g/cc)

D1505

0.940

0.940

0.940

0.940

0.940

0.940

0.940

Tensile Properties
(Each direction)(≥)
•   yield strength
•   break strength
•   yield elongation
•   break elongation

D6693 Type IV

8 kN/m   14 kN/m 12%    700%

11 kN/m
20 kN/m
12%
700%

15 kN/m
27 kN/m
12%
700%

18 kN/m
33 kN/m
12%    700%

22 kN/m 40 kN/m 12%    700%

29kN/m 53 KN/m 12%    700%

37kN/m 67kN/m 12%    700%

Tear Resistance (≥)

D 1004

64N

93N

125 N

156N

187N

249 N

311 N

Puncture Resistance(≥)

D 4833

160N

240N

320 N

400 N

480N

640 N

800 N

Stress Crack Resistance (≥)

D 5397

300 hr

300 hr

300 hr

300 hr

300 hr

300 hr

300 hr

Carbon Black Content

D 1603

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

2.0-3.0%

Carbon Black Dispersion

D 5596

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Note(1)

Oxidative Induction Time(OIT)(≥)       (a)Standard OIT                  ——or——
(b)High Pressure OIT

D 3895      D 5885

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min

100 min
400 min
