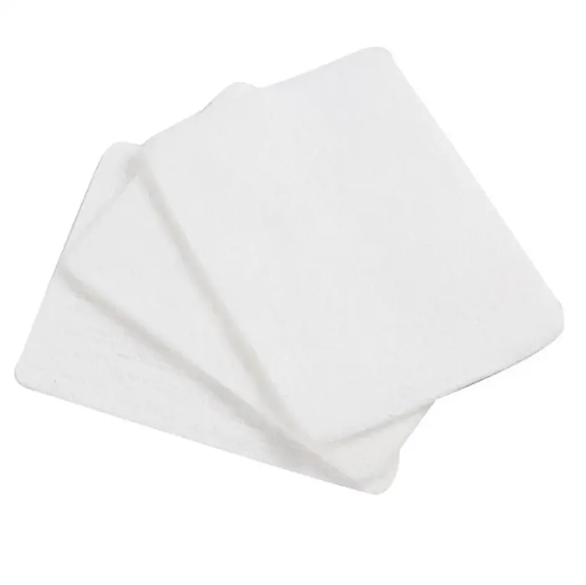

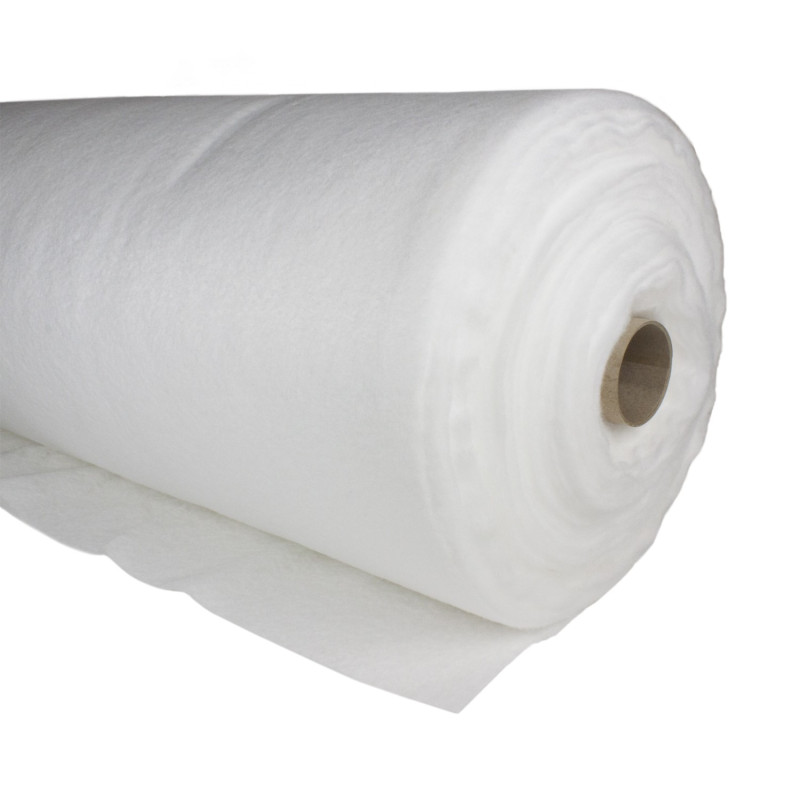

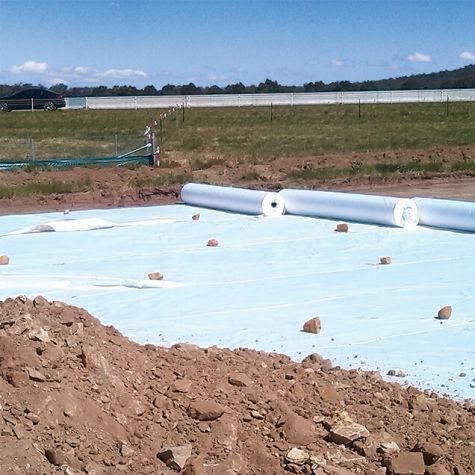

Soil isolation needle punched nonwoven geotextile
Non-woven geotextiles have the advantages of terrific water permeability, immoderate tensile strength, sturdy pressure resistance, and resistance to acid and alkali corrosion.
It can be used in soil reinforcement, waterproofing, filtration, isolation, security and distinct fields.
Product descriptions from the supplier
:
:
:
:
:
1m-7m(Customizable) :
50m-200m/Roll (Customizable) :
:
:
: ISO9001/ISO14001/ISO45001/CE-CCSD23010543609/CRCC
: Within 10 years (Based on actual product conditions)
: Online technical support, installation training, on-site guidance..
Product features
1. High strength: Non-woven geotextiles have immoderate tensile electrical energy and anti-rupture properties, which can effectively beautify the steadiness and bearing functionality of the soil.
2. Water permeability: Non-woven geotextiles have specific water permeability, which can keep the water permeability of the soil, reduce soil erosion, and beautify the water retention of the soil.
3. Protectiveness: Non-woven geotextiles can effectively stop soil erosion and damage, and shield the steadiness and safety of engineering structures such as land and dams.
4. Corrosion resistance: Non-woven geotextiles are generally made of corrosion-resistant raw materials, have proper corrosion resistance, and can adapt to engineering wishes beneath top notch environmental conditions.
5. Convenient construction: Non-woven geotextiles are moderate and soft, handy to lay and construct, and can be decrease and spliced as wished to decorate improvement efficiency.

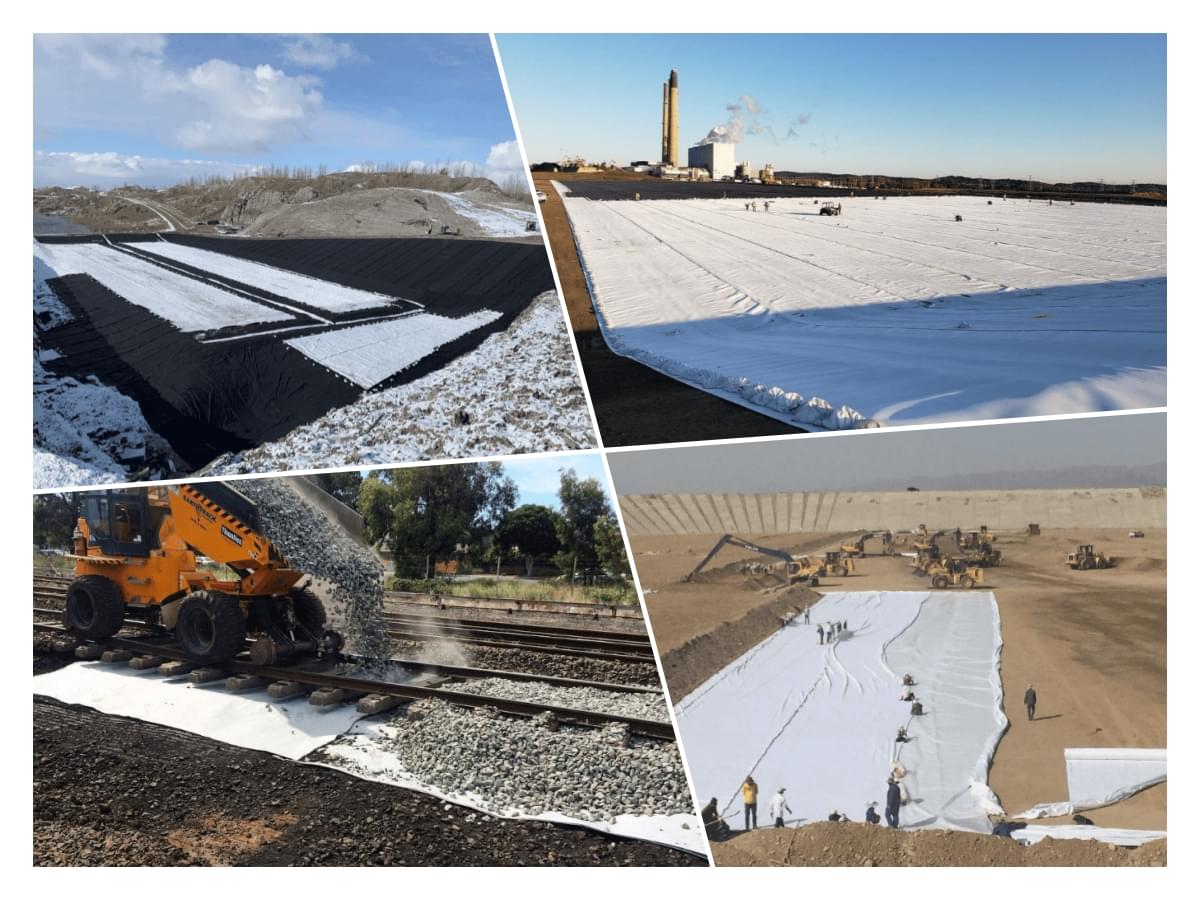

Product Application
1. Road engineering: Non-woven geotextiles can be used for avenue base reinforcement and groundwork improvement, decorate the bearing functionality and steadiness of the avenue surface, and extend the provider existence of the avenue surface.
2. Water conservancy projects: Non-woven geotextiles can be used in river channels, dams and reservoir initiatives to end soil erosion, toughen slopes, and protect water conservancy venture structures.
3. Environmental engineering: Non-woven geotextiles can be used in landfill anti-seepage, anti-corrosion, biogas sequence and special initiatives to defend the environment and give up groundwater from being polluted.
4. Garden engineering: Non-woven geotextiles can be used for soil preparation, backyard planting, plant root protection, etc., to beautify the beautification affect and amplify environment of outside inexperienced space.
5. Mining engineering: Non-woven geotextiles can be used in mine slope stabilization, tailings pond anti-seepage, mine greening and one of a kind duties to protect the mine environment and personnel safety.
Product indicators
Properties | Test Method | Unit | TW-CJ 100 | TW-CJ 150 | TW-CJ 200 | TW-CJ 250 | TW-CJ 300 | TW-CJ 400 | TW-CJ 500 | TW-CJ 600 | TW-CJ 800 |
Tensile Strength | EN ISO 10319 | kN/m | 7 | 11 | 16 | 20 | 21 | 27 | 34 | 40 | 45 |
Tensile Elongation(MD/TD) | EN ISO 10319 | % | 80/70 | 80/70 | 80/70 | 80/70 | 80/70 | 85/70 | 85/70 | 90/70 | 95/75 |
CBRPuncture Resistance | EN ISO 12236 | N | 1100 | 1700 | 2350 | 3000 | 3500 | 4500 | 5700 | 7000 | 9000 |
Pore Size O90 | EN ISO 12956 | µm | 130 | 100 | 100 | 95 | 85 | 85 | 80 | 80 | 80 |
Permeability | EN ISO 11058 | L/m2/s | 140 | 125 | 115 | 90 | 75 | 55 | 45 | 35 | 20 |
Weathering Resistance | EN 12224 | % | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
Exposure Time | EN 13249 | days | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
Chemical Resistance | EN 14030 | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Microbiological Resistance | EN 12225 | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Weight | EN ISO 9864 | g/m2 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 800 |
Roll Width | - | m | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
Roll Length | - | m | 300 | 250 | 150 | 150 | 100 | 100 | 75 | 50 | 50 |

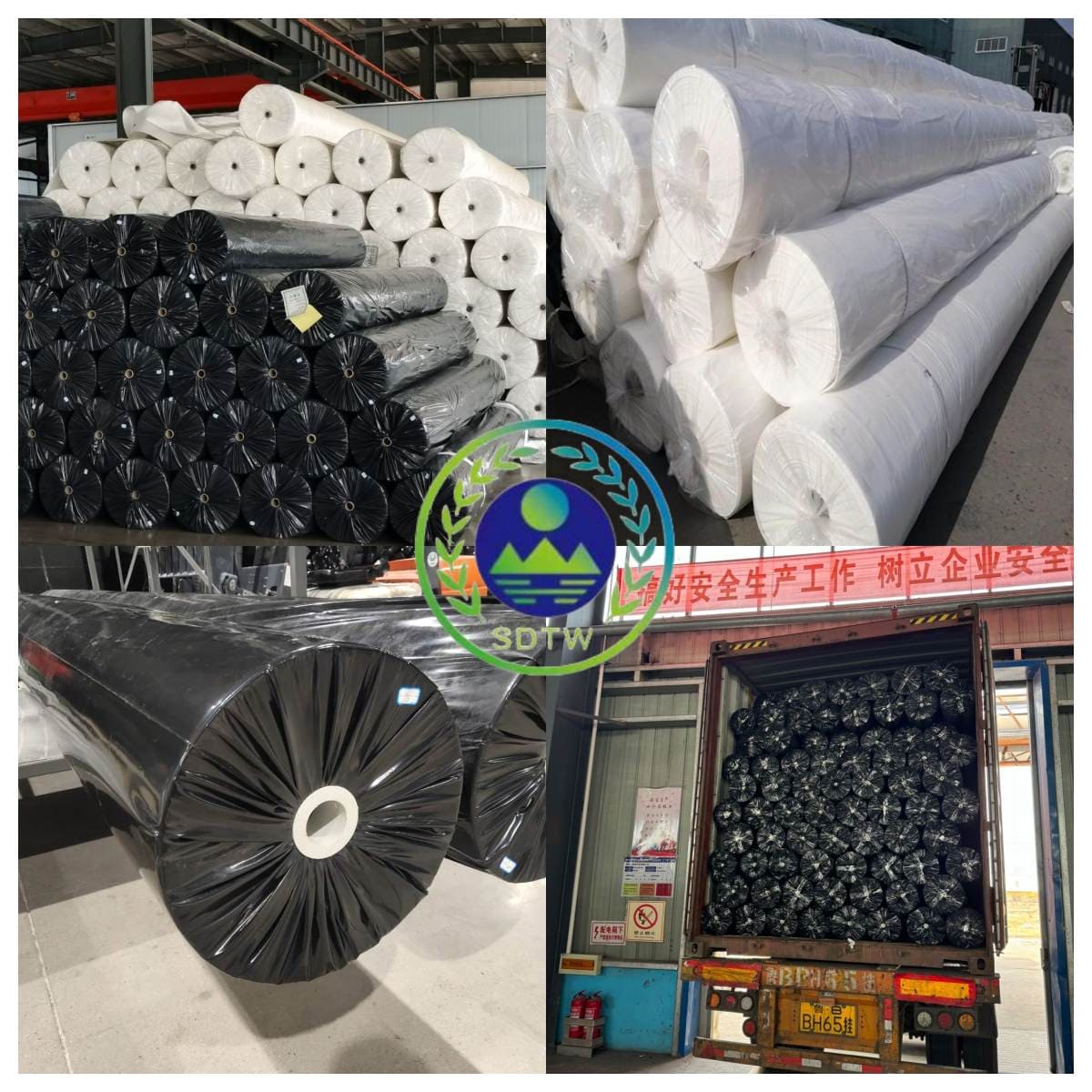

Packaging and Transportation
Company Introduction
FAQ
Can you design for us?
We have a professional design team to help our clients with their design work.
Do you accept processing orders?
We provide OEM and ODM services to customers.
Can we get the sample from your factory?
We can provide you with samples for free, but you need to pay the express fee before the first cooperation.
Can you have our brand printed on your products?
Yes. If you can meet our MOQ, we can print your logo on the product and packaging.
How do you guarantee the quality of the product for us?
We have a professional quality control team, and each product is strictly inspected before shipment.
How long is your delivery time?
Small orders take about one week, large orders need to be negotiated based on factory orders.
What is your method of payment?
We accept T/T, L/C, Western Union or negotiation. Don't worry about anything, if you have any questions please feel free to contact us
