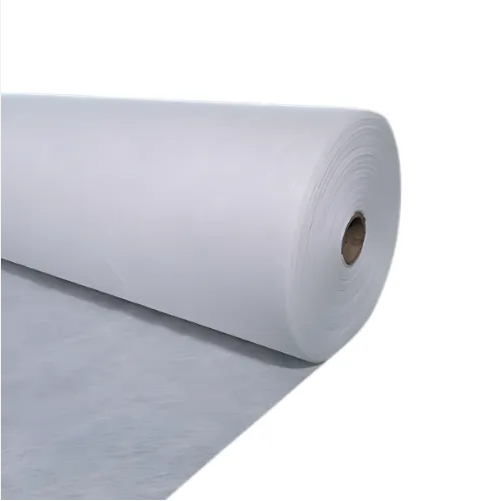

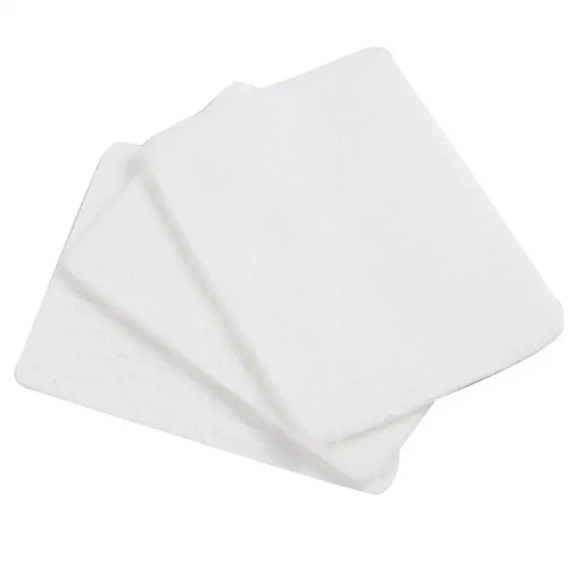

PP non-woven geotextile fabric is used for road load bearing
PP non-woven geotextile is a non-woven fabric made of polypropylene fiber and is typically used in civil engineering, gardening and environmental safety fields. Compared with common geotextiles, PP non-woven geotextiles have greater strength, higher water and air permeability.
Product descriptions from the supplier
:
:
:
: PP (Polypropylene)
:
1m-6m(Customizable) :
50m-200m/Roll (Customizable) :
:
:
: ISO9001/ISO14001/ISO45001/CE-CCSD23010543609/CRCC
: Within 10 years (Based on actual product conditions)
: Online technical support, installation training, on-site guidance..
Product features
1. High strength: PP geotextiles have immoderate tensile electricity and tear resistance, which can effectively beautify the steadiness of soil.
2. Corrosion resistance: Due to the use of polypropylene material, PP geotextile has sturdy corrosion resistance and is splendid for a wide variety of environmental conditions.
3. Aging resistance: PP geotextile has positive anti-aging functionality and can maintain constant normal overall performance for a prolonged time.
4. Water and air permeability: It has a certain diploma of water permeability and air permeability, which is truely beneficial to soil moisture steadiness and drainage.
5. Environmental protection: PP geotextile is a inexperienced and environmentally first-class material, has no air air pollution to the environment and meets the requirements of sustainable development.

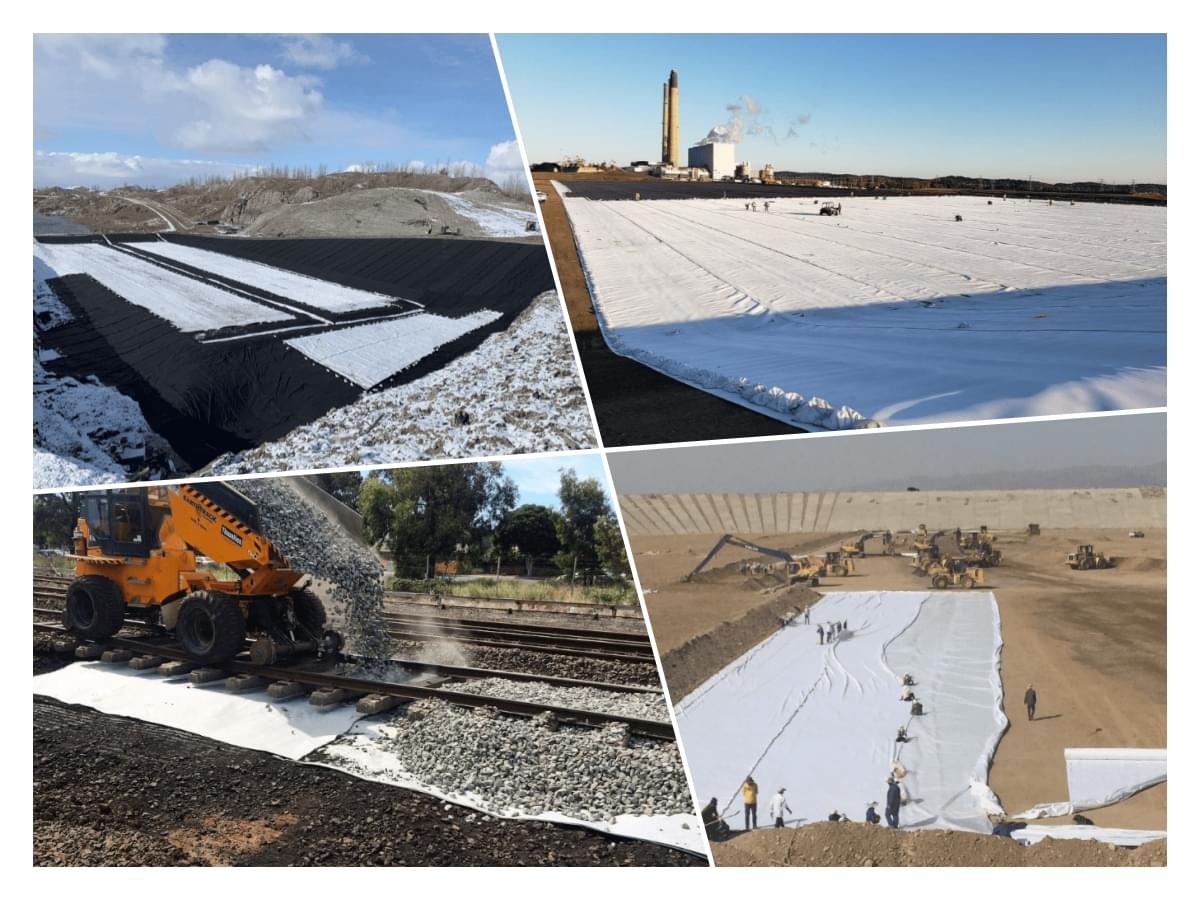

Product Application

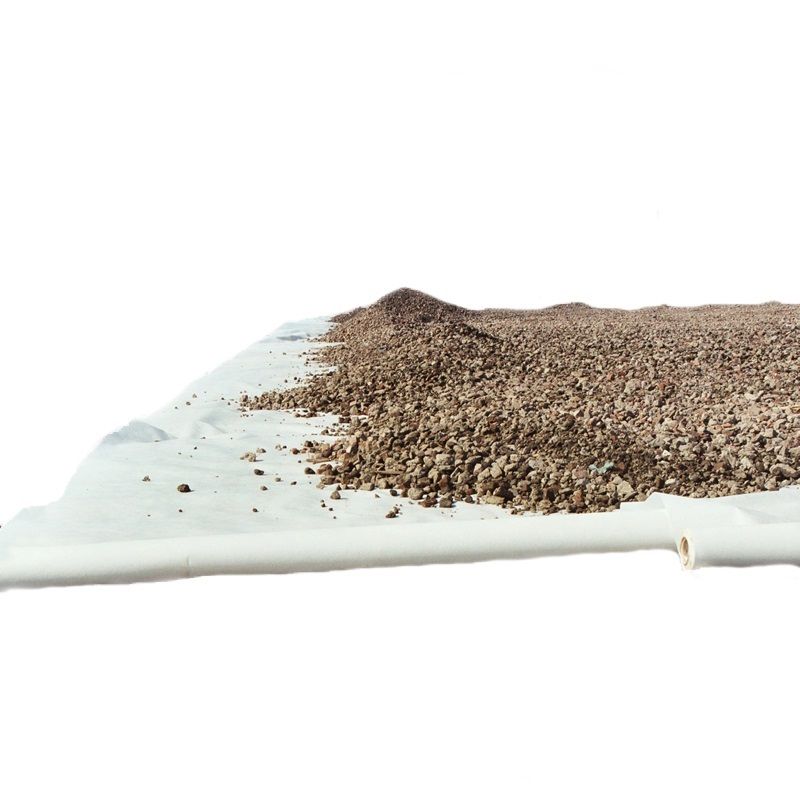

1. Road engineering: PP geotextile can be used to assist and drain the avenue base, end roadbed deformation or settlement, and beautify the load-bearing functionality and steadiness of the road.
2. Water conservancy projects: In water conservancy projects, PP geotextiles are regularly used to support dams, stop river monetary group erosion, stop leakage at the bottom of reservoirs, and fortify soil and water conservation.
3. Environmental security projects: PP geotextile can be used in environmental security duties such as the anti-seepage layer of landfills and the protecting layer of compost web sites to quit seepage and protect soil and water sources.
4. Construction projects: In improvement projects, PP geotextiles can be used as groundwork load-bearing reinforcement materials, wall water resistant materials, basement anti-seepage materials, etc. to decorate the stability and sturdiness of the establishing structure.
5. Garden projects: PP geotextile can be used in landscaping initiatives as a soil covering layer or planting layer to help soil protection and plant growth.
Product indicators
Properties | Test Method | Unit | TW-DP 100 | TW-DP 150 | TW-DP 200 | TW-DP 250 | TW-DP 300 | TW-DP 350 | TW-DP 400 | TW-DP 500 | TW-DP 600 | TW-DP 700 | TW-DP 800 |
Tensile Strength (MD/TD) | ASTM D4595 | kN/m | 6 | 9.5 | 13 | 17 | 19 | 23 | 26 | 34 | 38 | 42 | 48 |
Tensile Elongation (MD/TD) | ASTM D4595 | % | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Grab Tensile Strength (MD/TD) | ASTM D4632 | N | 450 | 550 | 730 | 1000 | 1100 | 1400 | 1700 | 2000 | 2500 | 2700 | 3000 |
Grab Elongation (MD/TD) | ASTM D4632 | % | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 70 | 70 |
Trapezoidal Tear Strength (MD/TD) | ASTM D4533 | N | 220 | 270 | 330 | 430 | 450 | 540 | 610 | 770 | 810 | 900 | 1000 |
CBR Burst Strength | ASTM D6241 | N | 1250 | 1800 | 2300 | 2800 | 3200 | 3600 | 4500 | 5600 | 6400 | 7500 | 8000 |
Pore Size O90 | ASTM D4751 | µm | 110 | 110 | 110 | 100 | 100 | 90 | 80 | 70 | 70 | 70 | 70 |
Water Flow Q100 | ASTM D4491 | L/m2/s | 250 | 235 | 210 | 190 | 170 | 160 | 125 | 100 | 80 | 60 | 60 |
U.V. Resistance | ASTM D4355 | %@500h | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
Thickness | ASTM D5199 | mm | 1 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.4 | 4.2 | 4.6 | 5 |
Weight | ASTM D5261 | g/m2 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 |
Roll Width | - | m | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Roll Length | - | m | 250 | 250 | 150 | 150 | 100 | 100 | 100 | 75 | 50 | 50 | 50 |

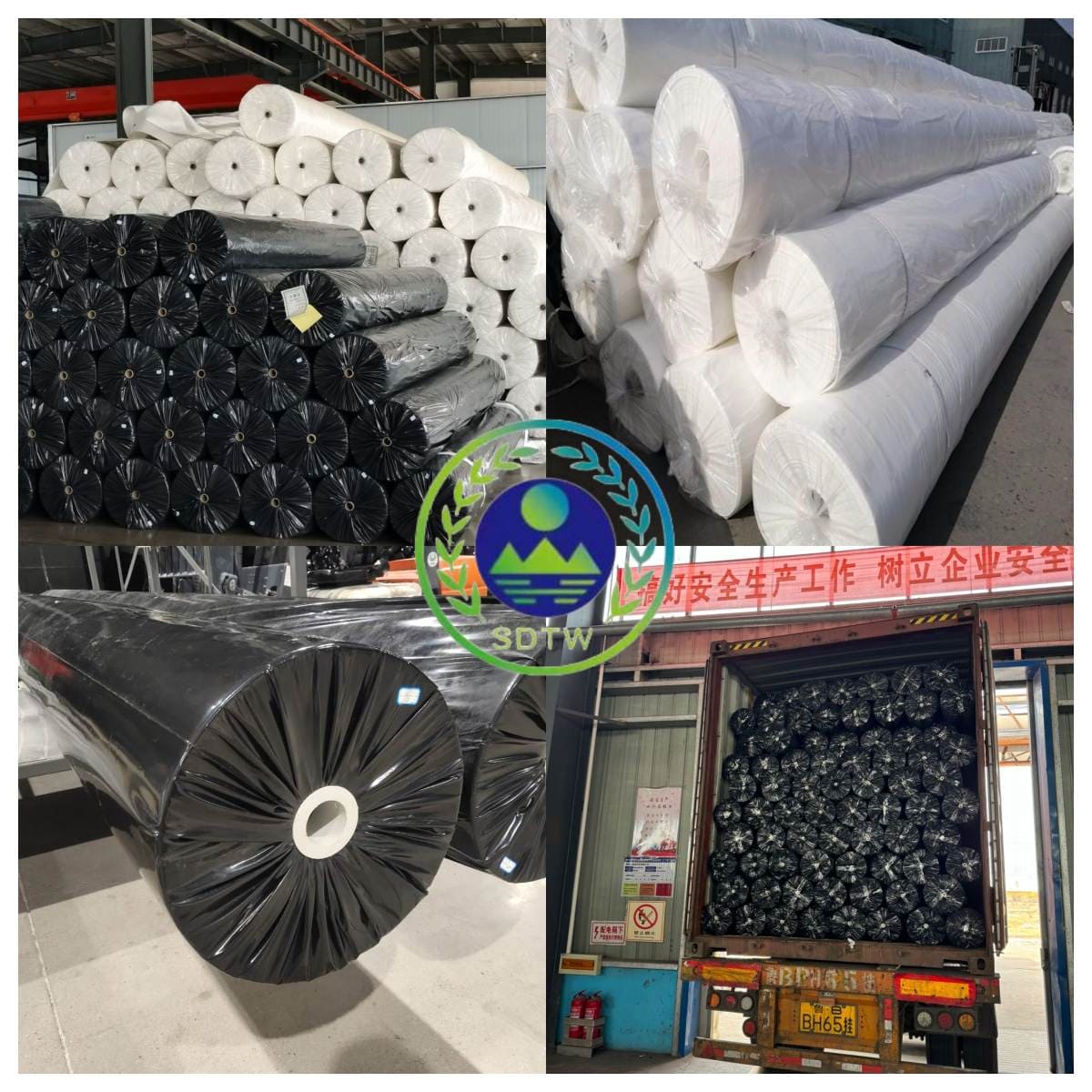

Packaging and Transportation
Company Introduction
FAQ
Can you design for us?
We have a professional design team to help our clients with their design work.
Do you accept processing orders?
We provide OEM and ODM services to customers.
Can we get the sample from your factory?
We can provide you with samples for free, but you need to pay the express fee before the first cooperation.
Can you have our brand printed on your products?
Yes. If you can meet our MOQ, we can print your logo on the product and packaging.
How do you guarantee the quality of the product for us?
We have a professional quality control team, and each product is strictly inspected before shipment.
How long is your delivery time?
Small orders take about one week, large orders need to be negotiated based on factory orders.
What is your method of payment?
We accept T/T, L/C, Western Union or negotiation. Don't worry about anything, if you have any questions please feel free to contact us.
