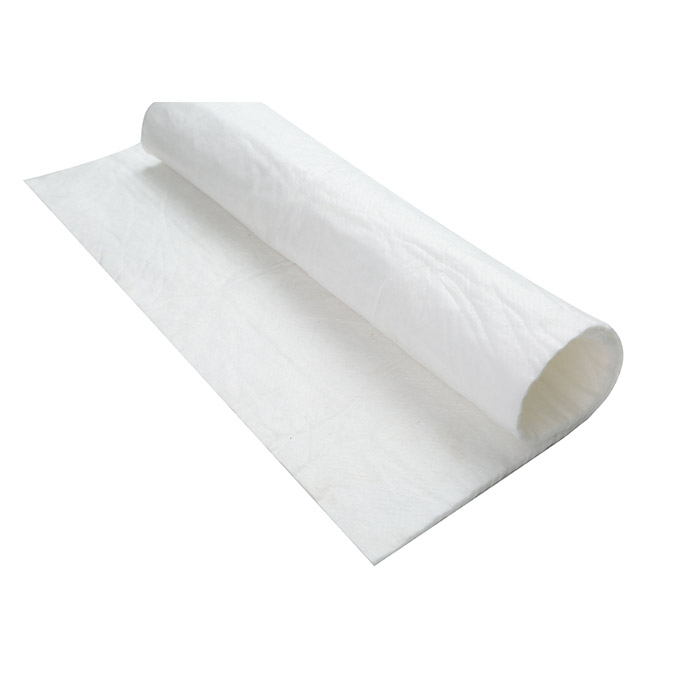

Railway Filament Nonwoven Geotextile
Filament nonwoven geotextile Material: PET
Color: white, black, green, orange, statistics coloration customization
Specifications: 100g-800g
Length: 50-200m
Certificate: CE/ISO9001
Reinforced and constant non-woven geotextile
If there are any special requirements, please inform our customer service personnel (color, length, width)
Product introduction;
Geotextile is a kind of artificial cloth used in civil engineering and building projects. One unique kind of geotextile is acknowledged as nonwoven geotextile or woven geotextile, oftentimes referred to as "long filament geotextile" or "long silk geotextile."
Long filament geotextile is made from polyester or polypropylene and is designed to have excessive tensile strength, durability, and resistance to a number environmental factors. It is in many instances used in functions such as soil stabilization, erosion control, drainage systems, and reinforcement of susceptible soils.
Product characteristics;
1. Long filament geotextile is its conceivable to separate rather proper soil layers, stopping the mixing of finer particles with coarse materials. This separation helps in stopping the loss of structural integrity and beautify the no longer individual steadiness of the structure.
2.Long filament geotextile is in addition as a choice splendid in erosion control. It helps to retain soil particles in place, stopping their action in the route of rainfall or water flow. in keeping the integrity of slopes, embankments, and security walls.
3. Long filament geotextile acts as a filter with the aid of capacity of typical overall performance of enabling water to ignore with the aid of with the useful resource of via with the aid of capacity of the use of the use at the identical time as blockading off the action of soil particles. This makes it extremely good for use in drainage systems, as it helps in stopping the clogging of pipes and channels with the beneficial beneficial useful resource of the use of mud and fines.
4.With its major tensile electrical electricity and durability, prolonged filament geotextile is an wonderful desire for reinforcement applications. It can be used to enhance the load-bearing frequent ordinary overall performance of inclined soils, imparting structural stability to roads, foundations, and amazing infrastructure initiatives .
Application:

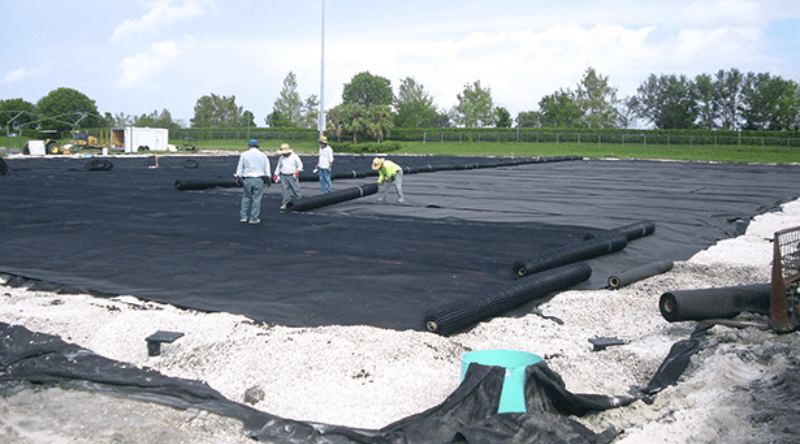

1. Road construction: Filament geotextiles are used for street reinforcement to beautify the load-bearing residences of gently sloping soil, making the avenue shape tightly closed and strong.

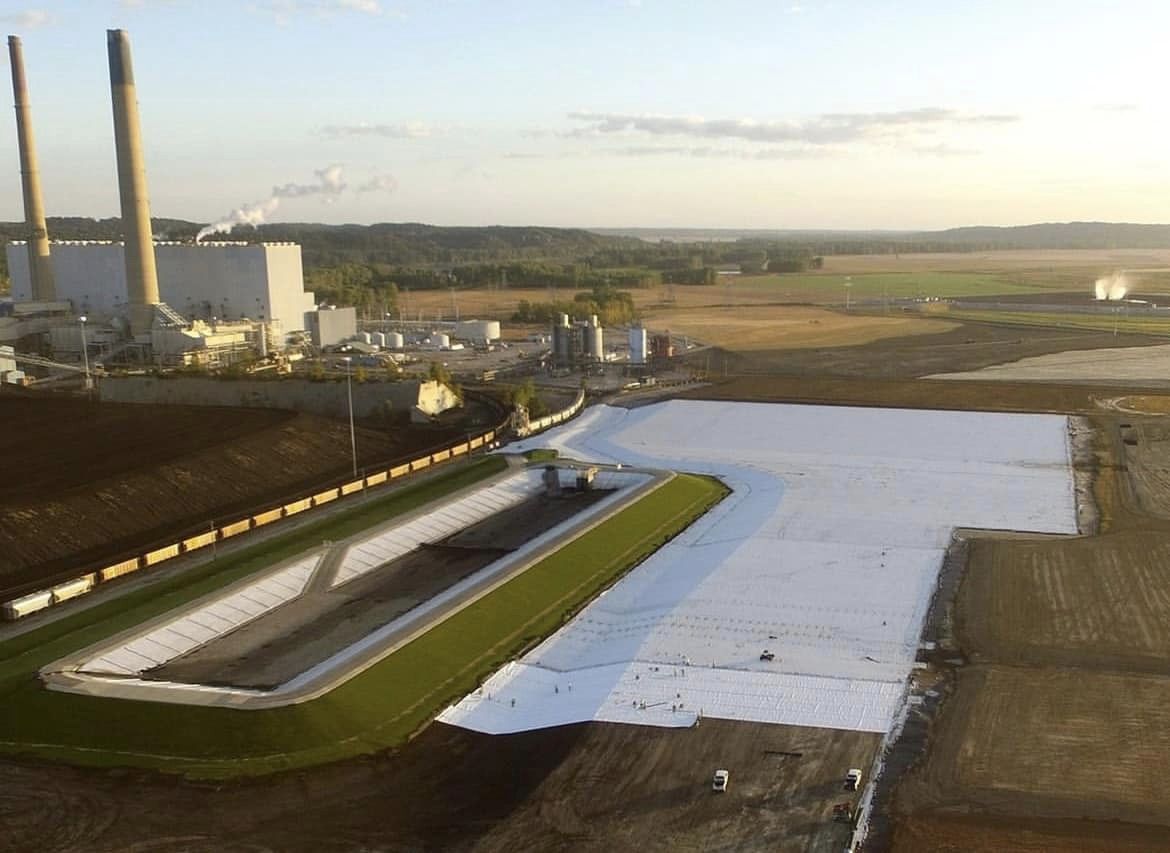

2. Landfill and Waste Containment: Filament geotextiles are used to gather landfill and waste containment systems. It helps stop the migration of contaminants and presents improved energy to the containment structure.
3. Railway and railway applications: Filament geotextiles are used in railway infrastructure to embellish the soil, manage erosion, and supply ornamental stability.
4. Building foundation: Filament geotextiles can be used to give a boost to the basis to extend the bearing capability of the soil, restriction shrinkage, and provide the shape a positive diploma of stability.
5. Landscaping and gardening: Filament geotextiles are used in landscaping to separate particular soil layers, adorn drainage systems, and manipulate weed growth.
Specifications
Filament Needled Non-woven Geotextile Technical Specifications ( GB/T17639-2008) | |||||||||
Type | TW100 | TW150 | TW200 | TW250 | TW300 | TW350 | TW400 | TW450 | TW500 |
Nominal Breaking Strength KN/m | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
MD/CD Break Strength≥KN/m | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
Elongation At Break% | 40%-80% | ||||||||
CBR KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
MD/CD Tearing Strength | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
Thickness(mm) | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
Unit Weight Tolerance% | -5 | ||||||||
Eos90(95),mm | 0.05-0.2 | ||||||||
Vertical Peability Coefficient cm/s | K*(10-1~10-3)K=1.0-9.9 | ||||||||
Width Deviation | -0.5 |
Geotextile packaging
You can freely choose PE film or PP woven bag for outer packaging, and there are paper tubes of different sizes inside the product for you to choose freely.
