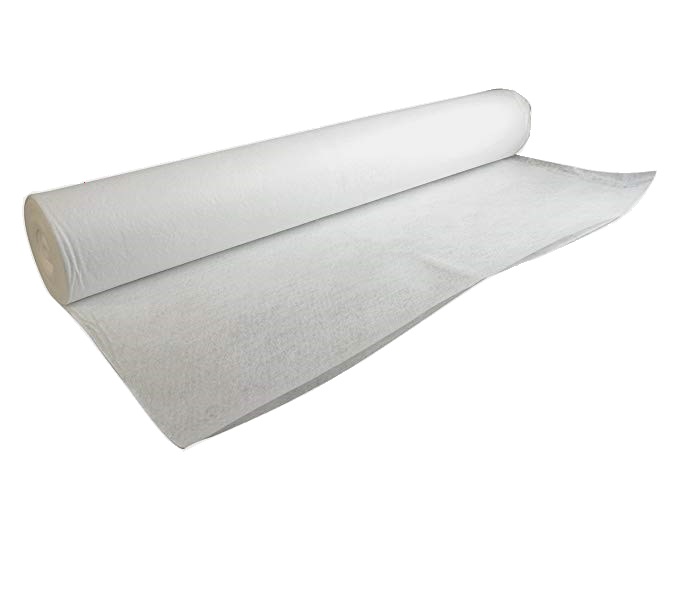

Polyester needle punched geotextile
PET nonwoven geotextile is a category of nonwoven fabric created from polyester fibers via a needle punching technique. It finds extensive application in civil engineering, horticulture, and environmental protection projects.
This material is distinguished by its remarkable tear and tensile strength, significantly improving soil stability and contributing to the reduction of soil erosion.
Product descriptions from the supplier
:
:
:
:
:
: 1m-7m（Customizable）
: 50m-200m/Roll (Customizable)
:
:
: ISO9001/ISO14001/ISO45001/CE-CCSD23010543609/CRCC
: Within 10 years （Based on actual product conditions）
: Online technical support, installation training, on-site guidance..
Product features
1. Superior strength: The PET needle-punched non-woven geotextile showcases exceptional tensile strength and durability, significantly improving the tensile capacity of the soil.
2. Corrosion resistance: The incorporation of PET material provides this geotextile with remarkable resistance to corrosion, rendering it suitable for application in demanding soil conditions.
3. Aging resistance: The PET needle-punched non-woven geotextile exhibits a high degree of resistance to aging, preserving its original performance attributes over an extended duration.
4. Water permeability: Generally, the PET needle-punched non-woven geotextile offers excellent water permeability, promoting effective soil drainage and reducing water retention within the soil.
5. Easy installation: The PET geotextile is flexible and manageable, allowing for easy cutting, placement, and joining, and can be tailored on-site to improve construction efficiency.
Product Application

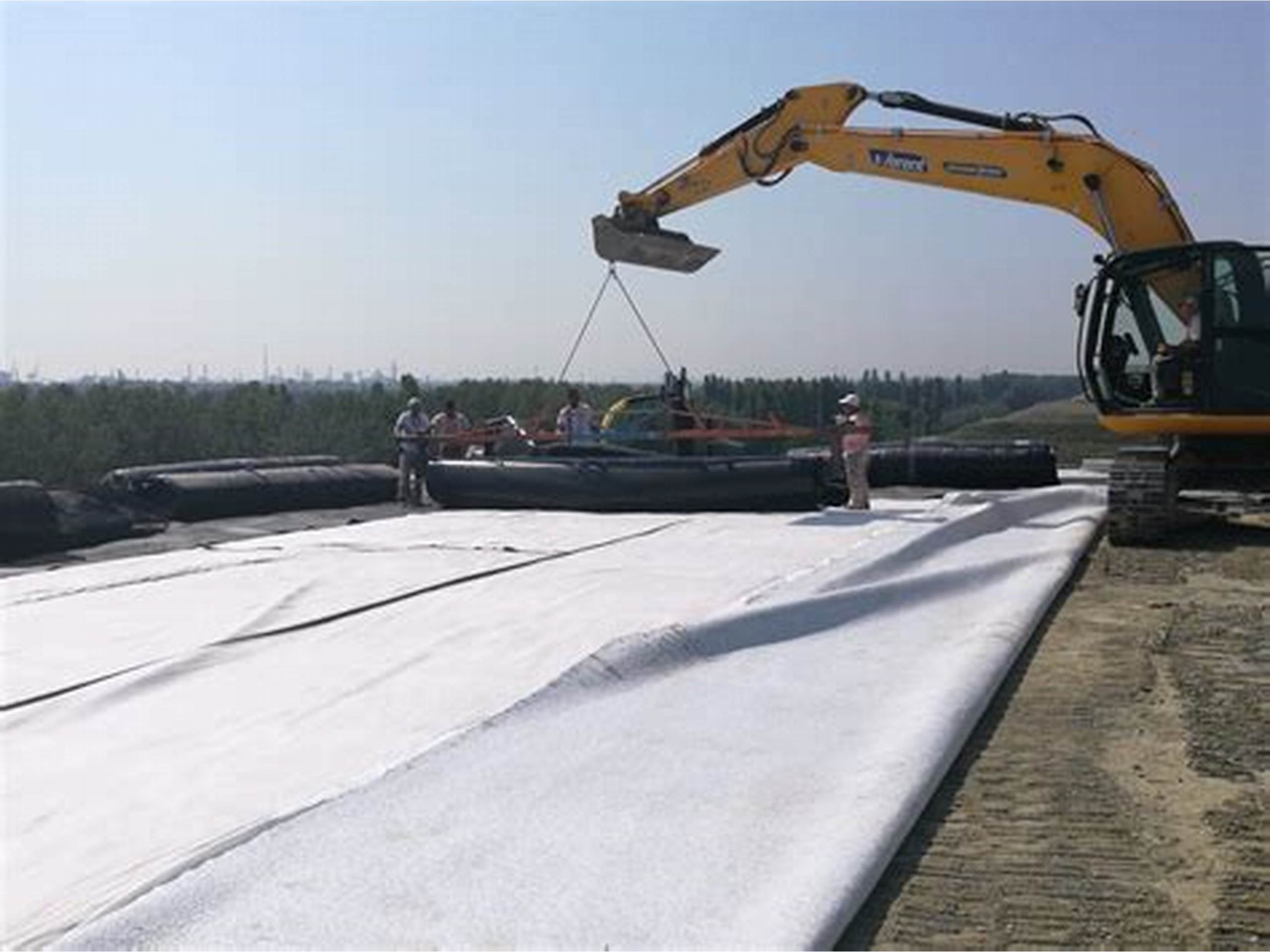

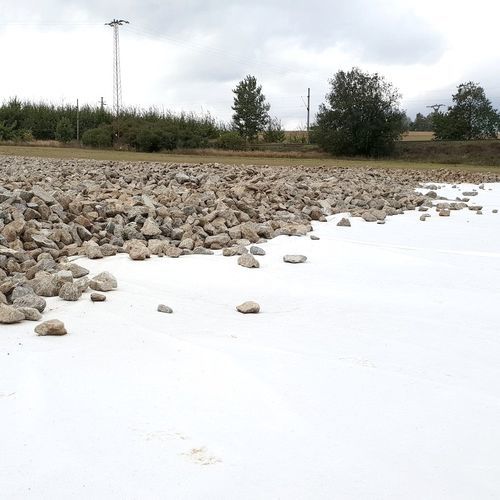

1. Road engineering: Non-woven geotextiles serve as highly efficient materials for reinforcing road bases and improving subgrade conditions. Their use significantly enhances the load-bearing capacity and stability of the road surface, thereby extending its operational lifespan.
2. Water conservancy projects: In the field of water management, non-woven geotextiles are applied in various contexts, including riverbanks, dams, and reservoirs, to reduce soil erosion, stabilize slopes, and uphold the structural integrity of water conservation infrastructures.
3. Environmental engineering: Non-woven geotextiles play a crucial role in landfill applications by providing solutions for seepage prevention and corrosion resistance, facilitating biogas collection, and addressing various environmental challenges to protect ecosystems and prevent groundwater contamination.
4. Garden engineering: In landscaping, non-woven geotextiles are employed for soil preparation, outdoor planting, and safeguarding plant roots, thereby enhancing both the aesthetic quality and sustainability of green spaces.
5. Mining engineering: Non-woven geotextiles are utilized in mining operations for slope stabilization, preventing seepage in tailings ponds, promoting mine rehabilitation, and ensuring the safety of the environment and personnel involved.
Product indicators
| Properties | Test Method | Unit | TW-CJ 100 | TW-CJ 150 | TW-CJ 200 | TW-CJ 250 | TW-CJ 300 | TW-CJ 400 | TW-CJ 500 | TW-CJ 600 | TW-CJ 800 |
| Tensile Strength | EN ISO 10319 | kN/m | 7 | 11 | 16 | 20 | 21 | 27 | 34 | 40 | 45 |
| Tensile Elongation(MD/TD) | EN ISO 10319 | % | 80/70 | 80/70 | 80/70 | 80/70 | 80/70 | 85/70 | 85/70 | 90/70 | 95/75 |
| CBRPuncture Resistance | EN ISO 12236 | N | 1100 | 1700 | 2350 | 3000 | 3500 | 4500 | 5700 | 7000 | 9000 |
| Pore Size O90 | EN ISO 12956 | µm | 130 | 100 | 100 | 95 | 85 | 85 | 80 | 80 | 80 |
| Permeability | EN ISO 11058 | L/m2/s | 140 | 125 | 115 | 90 | 75 | 55 | 45 | 35 | 20 |
| Weathering Resistance | EN 12224 | % | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Exposure Time | EN 13249 | days | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Chemical Resistance | EN 14030 | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Microbiological Resistance | EN 12225 | % | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Weight | EN ISO 9864 | g/m2 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 800 |
| Roll Width | - | m | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Roll Length | - | m | 300 | 250 | 150 | 150 | 100 | 100 | 75 | 50 | 50 |
Packaging and Transportation
Company Introduction
FAQ
Can you design for us?
We have a professional design team to help our clients with their design work.
Do you accept processing orders?
We provide OEM and ODM services to customers.
Can we get the sample from your factory?
We can provide you with samples for free, but you need to pay the express fee before the first cooperation.
Can you have our brand printed on your products?
Yes. If you can meet our MOQ, we can print your logo on the product and packaging.
How do you guarantee the quality of the product for us?
We have a professional quality control team, and each product is strictly inspected before shipment.
How long is your delivery time?
Small orders take about one week, large orders need to be negotiated based on factory orders.
What is your method of payment?
We accept T/T, L/C, Western Union or negotiation. Don't worry about anything, if you have any questions please feel free to contact us.
