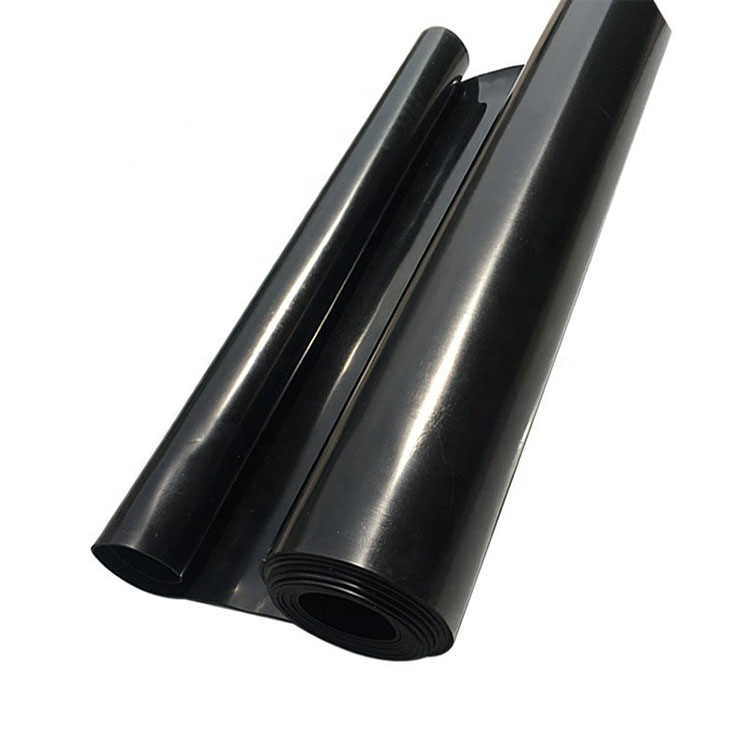

Water-blocking and anti-seepage HDPE geomembrane
HDPE geomembrane is manufactured using either a three-layer co-extrusion technique or a calendering process. This material serves as an exceptional barrier against water, making it a valuable asset in engineering applications.
1. Superior resistance to penetration, providing waterproofing, anti-seepage, and isolation capabilities.
2. Exceptional resistance to chemical corrosion.
3. Enhanced impact resistance and durability against wear.
Product descriptions from the supplier
: HDPE Geomembrane
:
:
:
:
: 1m-8m（Customizable）
: 50m-200m/Roll (Customizable)
:
:
: ISO9001/ISO14001/ISO45001/CE-CCSD23010543609/CRCC
: Within 10 years （Based on actual product conditions）
: Online technical support, installation training, on-site guidance..
Product features
1. The HDPE geomembrane displays remarkable chemical stability, showcasing its resistance to strong acids, alkalis, and oil degradation. It functions as a robust anti-corrosion material.
2. The tensile strength of HDPE geomembrane is exceptionally appropriate, meeting the demands of various high-standard projects.
3. The HDPE geomembrane exhibits strong resistance to local weather conditions and anti-aging properties, enabling extended usage without a reduction in effectiveness.
4. The HDPE geomembrane ensures reliable performance over its entire lifespan. It possesses considerable tensile strength and elongation at break, making it suitable for use in demanding geological and climatic conditions. Its adaptability to irregular geological features and its ability to withstand stress are noteworthy.
Product Application

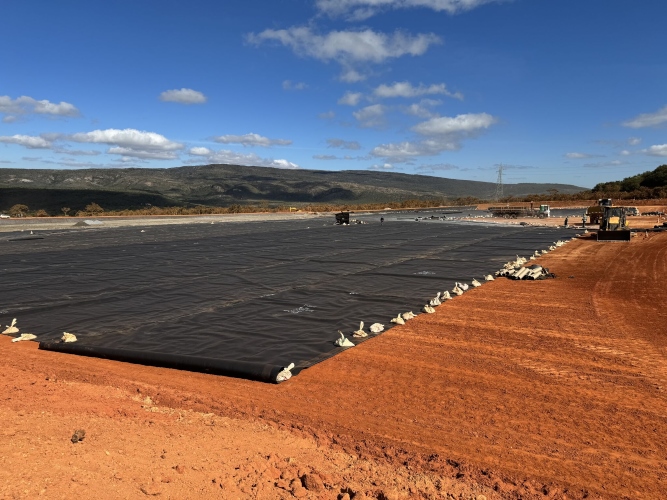

1. Water management strategies: utilized for anti-seepage lining in reservoirs, channels, dams, rivers, and comparable structures.
2. Environmental protection: employed as anti-seepage barriers in essential locations like landfills, sewage treatment plants, and chemical production sites to avert the infiltration of hazardous materials into groundwater or soil, thereby significantly reducing soil erosion and leakage.
3. Agriculture and aquaculture: utilized for anti-seepage barriers in environments like swimming pools, fish ponds, and aquaculture facilities, which can greatly minimize water resource loss and improve breeding efficiency.
4. Infrastructure: established for anti-seepage barriers in roadways, railways, airports, and diverse foundational projects, enhancing both visual appeal and structural integrity.
Product indicators
| HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard) | ||||||||||
| Spec Properties | Test method ASTM | GMS0.2 | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 | GMS3.0 |
| Thickness | D5199 | 0.2mm | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.94 |
| Tensile Properties (Each direction)(≥) • yield strength • break strength • yield elongation • break elongation | D6693 Type IV | 3 kN/m 5 kN/m 12% 700% | 8 kN/m 14 kN/m 12% 700% | 11 kN/m 20 kN/m 12% 700% | 15 kN/m 27 kN/m 12% 700% | 18 kN/m 33 kN/m 12% 700% | 22 kN/m 40 kN/m 12% 700% | 29kN/m 53 KN/m 12% 700% | 37kN/m 67kN/m 12% 700% | 44kN/m 80kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 25N | 64N | 93N | 125 N | 156N | 187N | 249 N | 311 N | 374 N |
| Puncture Resistance(≥) | D 4833 | 64N | 160N | 240N | 320 N | 400 N | 480N | 640 N | 800 N | 960 N |
| Stress Crack Resistance (≥) | D 5397 | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— (b)High Pressure OIT | D 3895 D 5885 | 100min 500min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min |
