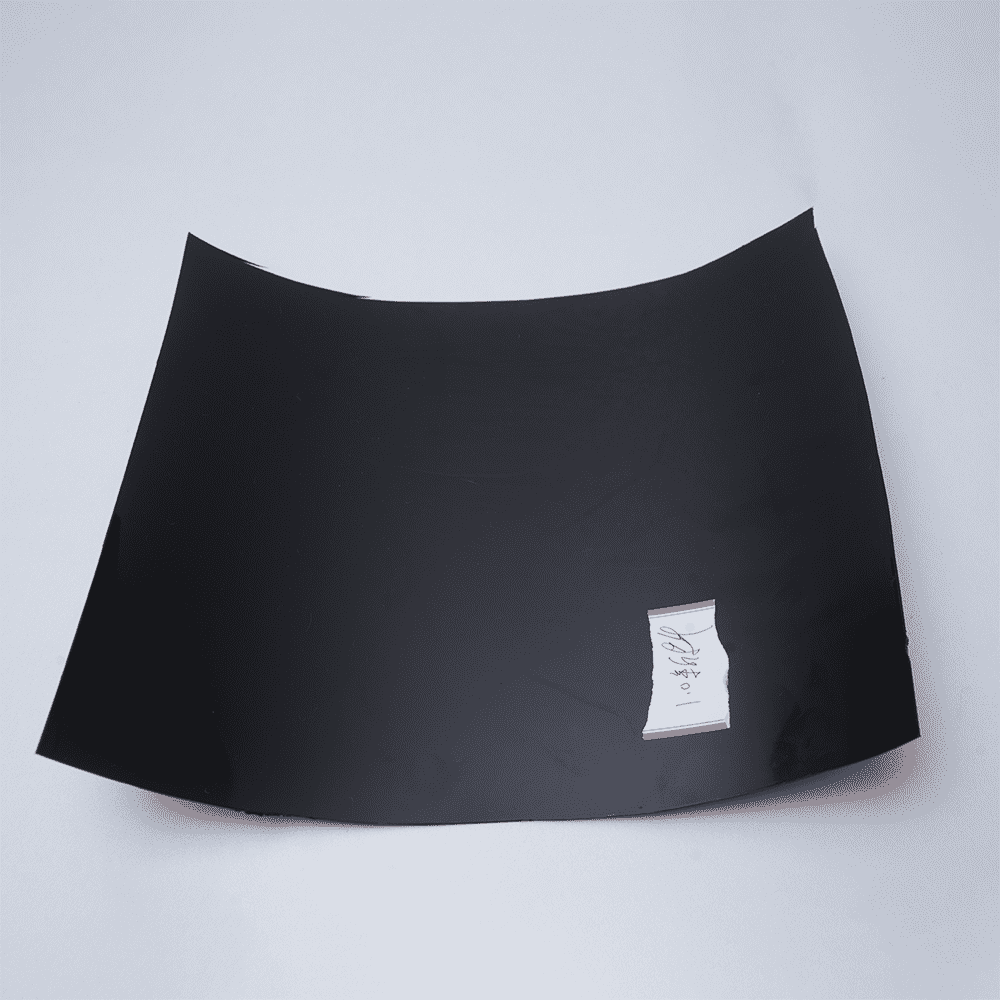

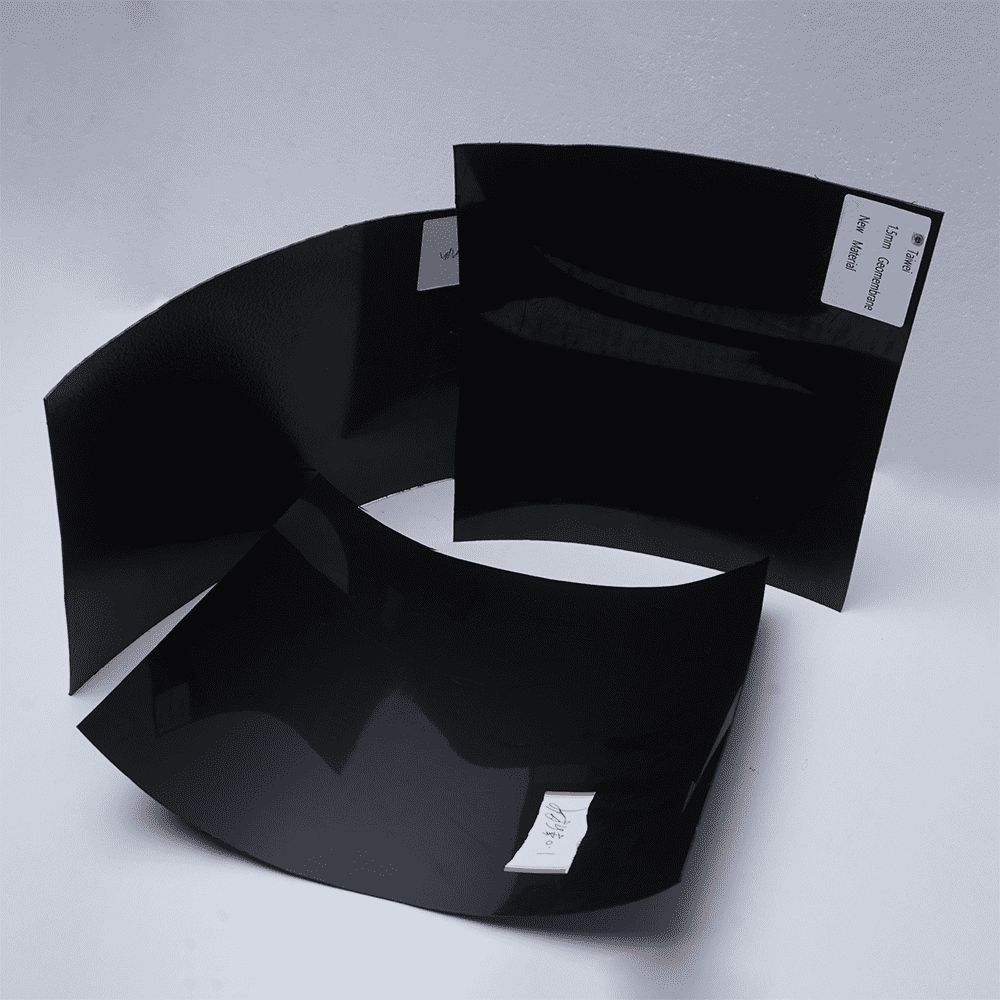

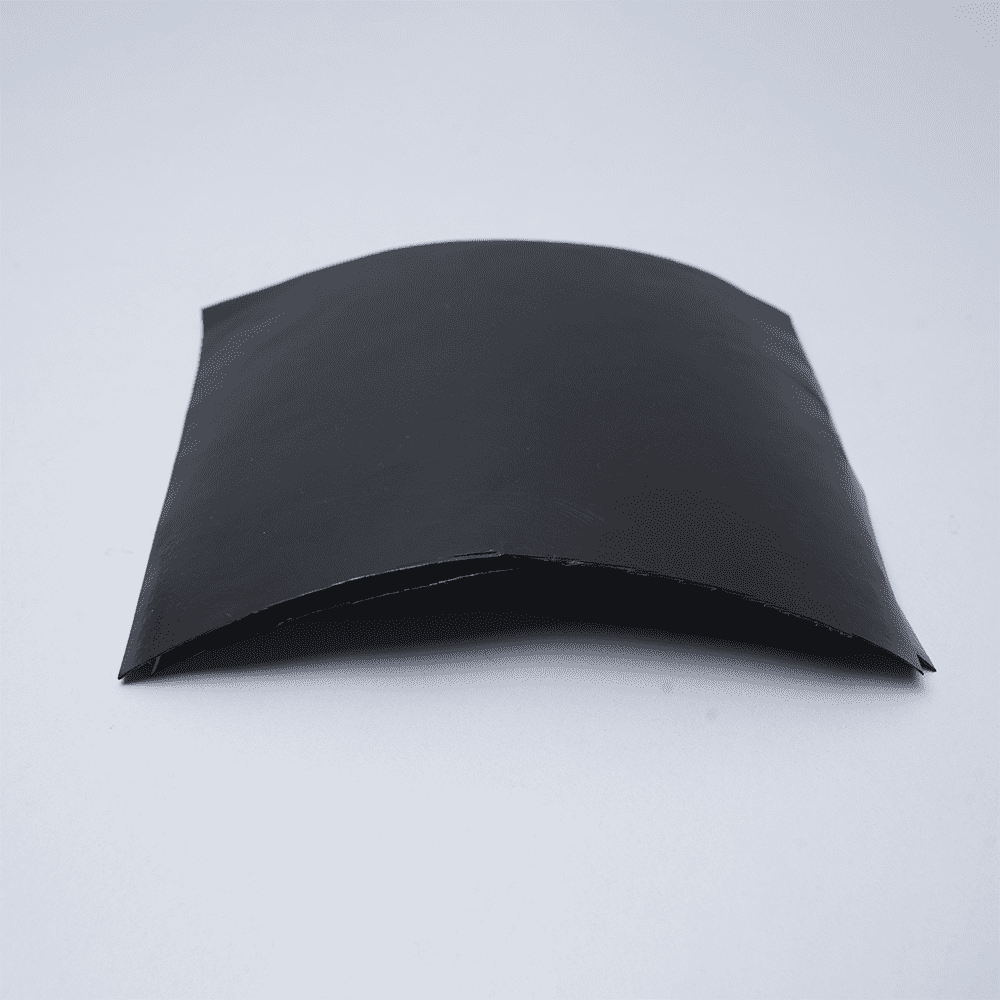

Isolated leak-proof geomembrane pond liner for landfills, fish ponds
HDPE geomembrane ；
Product specifications; Thickness; 0.3-3.0mm, width 1-8 meters, helps customization
Product characteristics; HDPE geomembrane has proper resistance to environmental stress cracking, big company temperature (-60-+60), and prolonged service existence (≥50 years)
Application scope; Merit in water conservancy, aquaculture, fish ponds, and so forth
High strength pond liner dam impermeable geomembrane
Product Introduction:
HDPE Geomembrane, also known as High Density Polyethylene Geomembrane, is a versatile and reliable product widely used in various civil engineering and environmental applications. It is a robust synthetic membrane designed to prevent the seepage of liquid or gas in containmentsystems.
Features:
1.High-Density Polyethylene: HDPE Geomembrane is made from high-quality, durable raw materials of high-density polyethylene. This ensures its excellent strength, flexibility, and resistance to puncture, tearing, and impact.
2.Chemical Resistance: HDPE Geomembrane exhibits excellent resistance to a wide range of chemicals, including acids, alkalis, and organic solvents, making it perfect for use in diverse applications.
3.Weather Resistance: This geomembrane is designed to withstand harsh environmental conditions. It is UV resistant and can effectively tolerate extreme temperatures, ensuring its long-term performance and durability.
4.Impermeable Barrier: HDPE Geomembrane provides a highly effective barrier against the seepage of liquids, such as water and industrial effluents, as well as gases. It prevents contamination and protects surrounding soil, groundwater, and the environment.
5.Ease of Installation: Our HDPE Geomembrane is lightweight and easily customizable to fit various project requirements. It can be fabricated into panels of different sizes, allowing for efficient and quick installation. The geomembrane's excellent flexibility ensures seamless coverage of irregular surfaces.
Application:

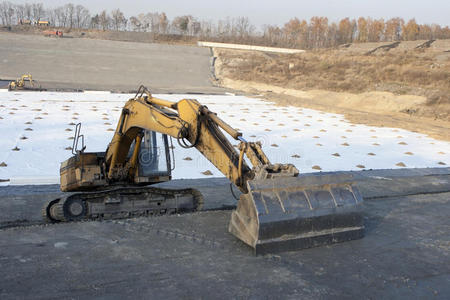

1.Landfill Liners: HDPE Geomembrane is widely used as the primary barrier in landfill liner systems, preventing the potential leakage of hazardous substances into the soil and groundwater.

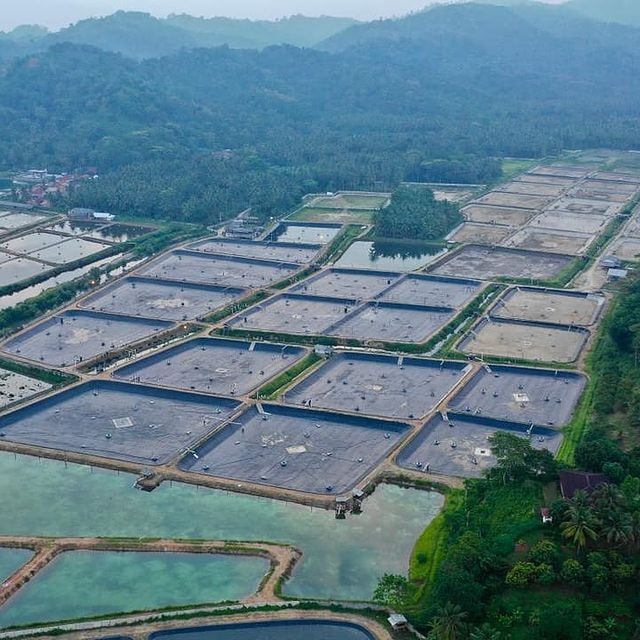

2.Pond and Canal Liners: It is an ideal choice for constructing liners in ponds, reservoirs, canals, and wastewater treatment facilities. The geomembrane effectively retains water, prevents seepage, and maintains water quality.
3.Mining and Environmental Applications: HDPE Geomembrane plays a crucial role in mining operations by functioning as a liner in tailing ponds, heap leach pads, and acid mine drainage control systems. It is also vital in environmental protection applications, such as liquid containment in chemical storage tanks and secondary containment systems.
4.Agriculture: In agriculture, HDPE Geomembrane is used as a lining material for water storage tanks, irrigation channels, and fish ponds, ensuring efficient water use and preventing soil erosion.
Product Implementation Standards: ASTM Standard
HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard) | ||||||||
Spec Properties | Test | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1 .25mm | 1.50mm | 2.00mm | 2.50mm |
Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
Tensile Properties | D6693 Type IV | 8 kN/m 14 kN/m 12% 700% | 11 kN/m | 15 kN/m | 18 kN/m | 22 kN/m 40 kN/m 12% 700% | 29kN/m 53 KN/m 12% 700% | 37kN/m 67kN/m 12% 700% |
Tear Resistance (≥) | D 1004 | 64N | 93N | 125 N | 156N | 187N | 249 N | 311 N |
Puncture Resistance(≥) | D 4833 | 160N | 240N | 320 N | 400 N | 480N | 640 N | 800 N |
Stress Crack Resistance (≥) | D 5397 | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr |
Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— | D 3895 D 5885 | 100 min | 100 min | 100 min | 100 min | 100 min | 100 min | 100 min |
HDPE geomembrane plastic packaging
Equipment of High Quality Good anti-seepage performance HDPE geomembrane
Usage Scenarios of High Quality Good anti-seepage performance HDPE geomembrane
HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard) | ||||||||
Spec Properties | Test | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1 .25mm | 1.50mm | 2.00mm | 2.50mm |
Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
Tensile Properties | D6693 Type IV | 8 kN/m 14 kN/m 12% 700% | 11 kN/m | 15 kN/m | 18 kN/m | 22 kN/m 40 kN/m 12% 700% | 29kN/m 53 KN/m 12% 700% | 37kN/m 67kN/m 12% 700% |
Tear Resistance (≥) | D 1004 | 64N | 93N | 125 N | 156N | 187N | 249 N | 311 N |
Puncture Resistance(≥) | D 4833 | 160N | 240N | 320 N | 400 N | 480N | 640 N | 800 N |
Stress Crack Resistance (≥) | D 5397 | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr |
Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— | D 3895 D 5885 | 100 min | 100 min | 100 min | 100 min | 100 min | 100 min | 100 min |
