High density anti-seepage and corrosion-resistant hdpe geomembrane
HDPE geomembrane ；
Product specifications; Thickness; 0.3-3.0mm, width 1-8 meters, helps customization
Product characteristics; HDPE geomembrane has proper resistance to environmental stress cracking, big company temperature (-60-+60), and prolonged service existence (≥50 years)
Application scope; Merit in water conservancy, aquaculture, fish ponds, and so forth
High density anti-seepage and corrosion-resistant hdpe geomembrane
Product Introduction:
HDPE geomembrane is a film made of high-density polyethylene material with many unique product features and a wide range of applications.
Features:
1. Strong durability: HDPE geomembrane has good durability and anti-aging properties, and can maintain stable physical properties for a long time.
2. Chemical corrosion resistance: HDPE geomembrane has high corrosion resistance to most chemicals and can effectively protect soil and water sources from pollution.
3. High tensile strength: HDPE geomembrane has excellent tensile strength, can withstand certain external forces and pressures, and has good tensile properties.
4. Anti-permeability: HDPE geomembrane has high permeability barrier ability, which can effectively prevent the penetration of water, gas and chemical substances, and play the role of anti-penetration and isolation.
5. Good flexibility: HDPE geomembrane has good flexibility and bending performance, and is suitable for various terrains and environmental conditions.
Application:
1. Anti-penetration projects: HDPE geomembrane is widely used in anti-penetration projects, such as anti-penetration layers in landfills, wastewater treatment plants, chemical plants, power plants, etc.
2. Agricultural engineering: HDPE geomembrane can be used as the anti-penetration layer of reservoirs, channels, ponds, etc. in agricultural water conservancy projects to avoid the waste of water resources.
3. Road and railway projects: HDPE geomembrane can be used as a waterproof layer for road and railway projects, effectively isolating the surface from the underlying soil and preventing moisture from penetrating and causing damage to the road surface.
4. Underground water transmission project: HDPE geomembrane can be used as the anti-penetration layer of underground water pipelines to ensure the purity of water sources and the reliability of supply.
5. Construction projects: HDPE geomembrane can be used as a waterproof layer in construction projects, such as roof waterproofing, basement waterproofing, etc.
Product Implementation Standards: ASTM Standard
HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard) | ||||||||
Spec Properties | Test | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1 .25mm | 1.50mm | 2.00mm | 2.50mm |
Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
Tensile Properties | D6693 Type IV | 8 kN/m 14 kN/m 12% 700% | 11 kN/m | 15 kN/m | 18 kN/m | 22 kN/m 40 kN/m 12% 700% | 29kN/m 53 KN/m 12% 700% | 37kN/m 67kN/m 12% 700% |
Tear Resistance (≥) | D 1004 | 64N | 93N | 125 N | 156N | 187N | 249 N | 311 N |
Puncture Resistance(≥) | D 4833 | 160N | 240N | 320 N | 400 N | 480N | 640 N | 800 N |
Stress Crack Resistance (≥) | D 5397 | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr |
Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— | D 3895 D 5885 | 100 min | 100 min | 100 min | 100 min | 100 min | 100 min | 100 min |

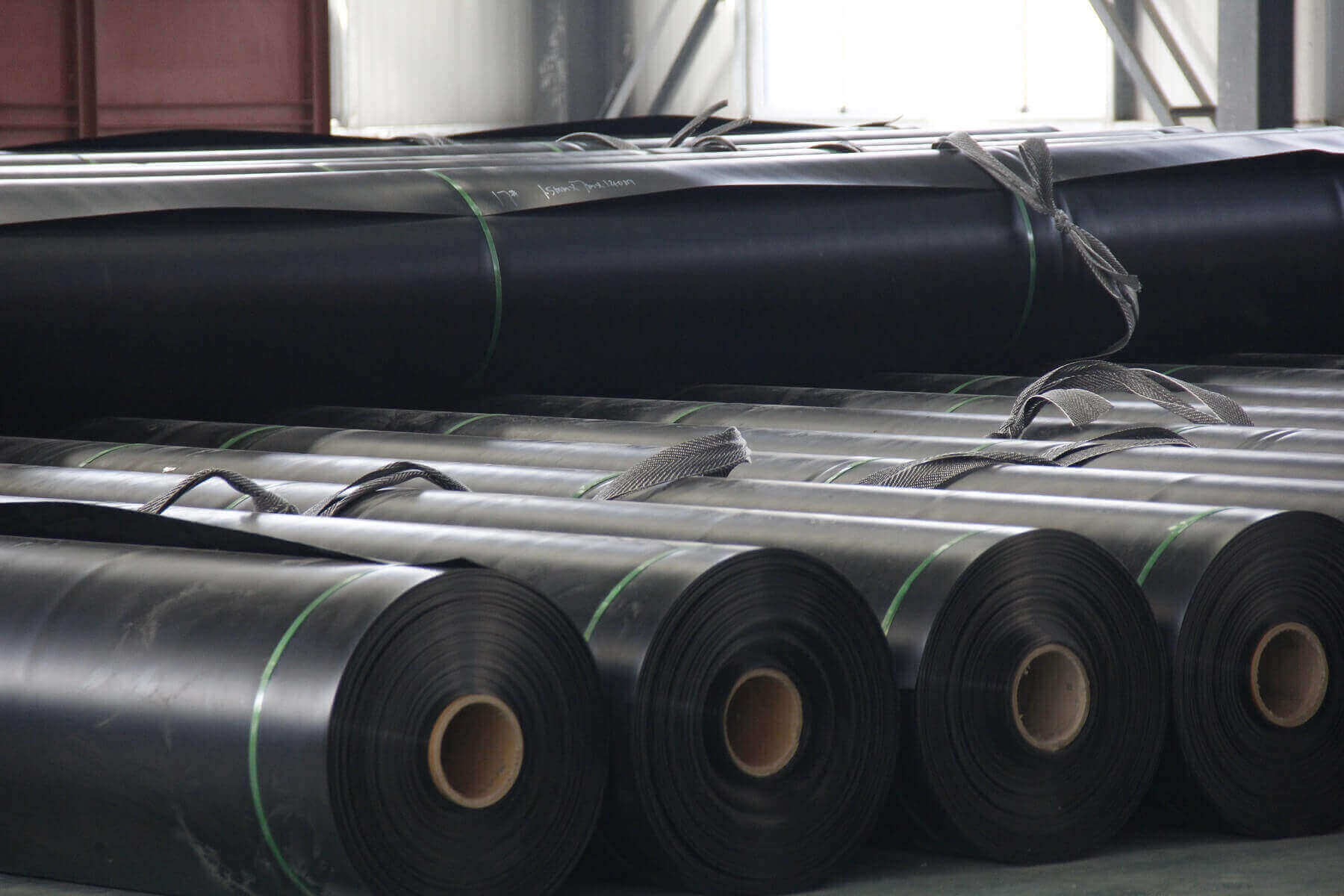

HDPE geomembrane plastic packaging
Equipment of High Quality Good anti-seepage performance HDPE geomembrane

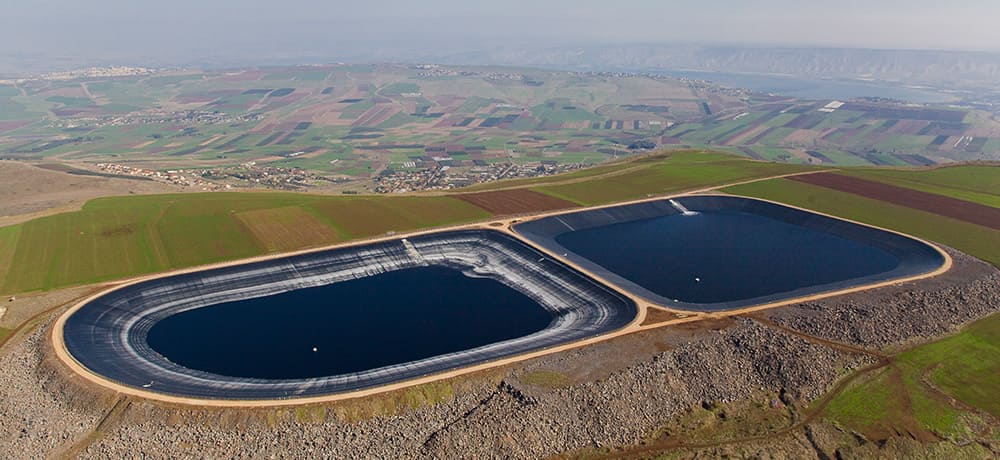

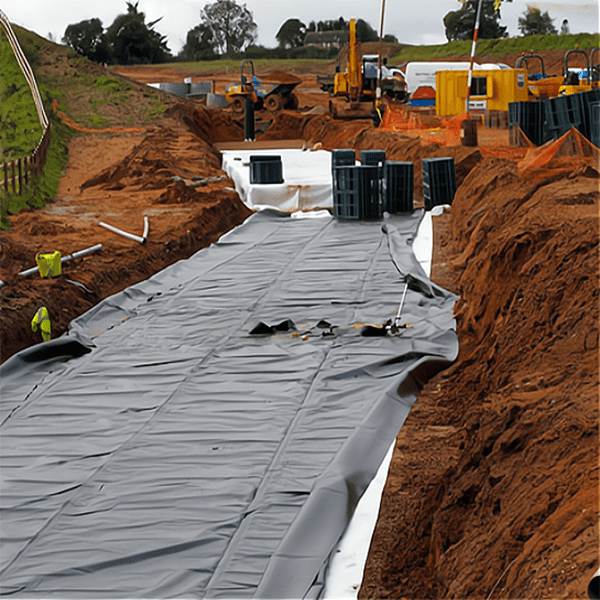

Usage Scenarios of High Quality Good anti-seepage performance HDPE geomembrane
HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard) | ||||||||
Spec Properties | Test | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1 .25mm | 1.50mm | 2.00mm | 2.50mm |
Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
Tensile Properties | D6693 Type IV | 8 kN/m 14 kN/m 12% 700% | 11 kN/m | 15 kN/m | 18 kN/m | 22 kN/m 40 kN/m 12% 700% | 29kN/m 53 KN/m 12% 700% | 37kN/m 67kN/m 12% 700% |
Tear Resistance (≥) | D 1004 | 64N | 93N | 125 N | 156N | 187N | 249 N | 311 N |
Puncture Resistance(≥) | D 4833 | 160N | 240N | 320 N | 400 N | 480N | 640 N | 800 N |
Stress Crack Resistance (≥) | D 5397 | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr | 300 hr |
Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— | D 3895 D 5885 | 100 min | 100 min | 100 min | 100 min | 100 min | 100 min | 100 min |
