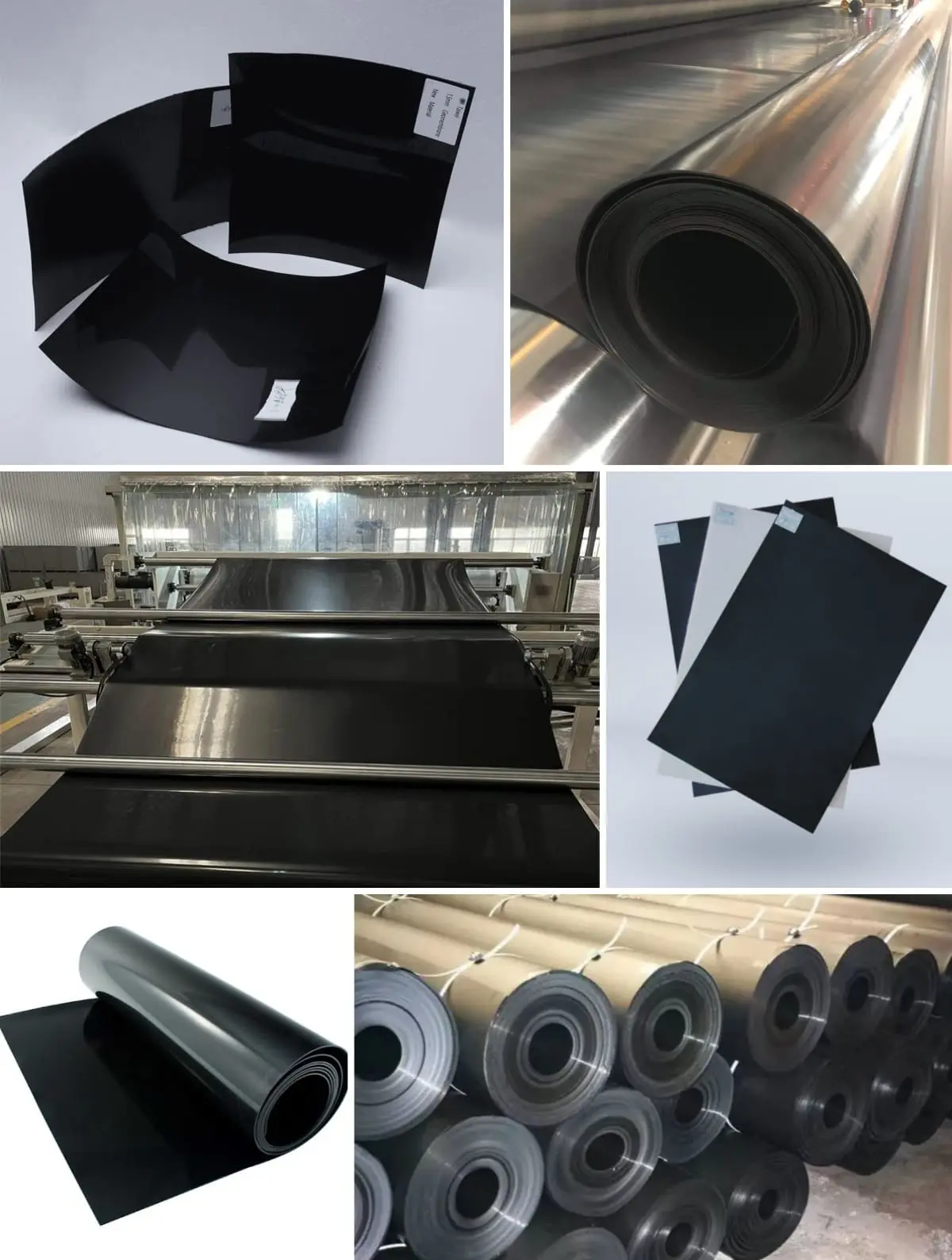

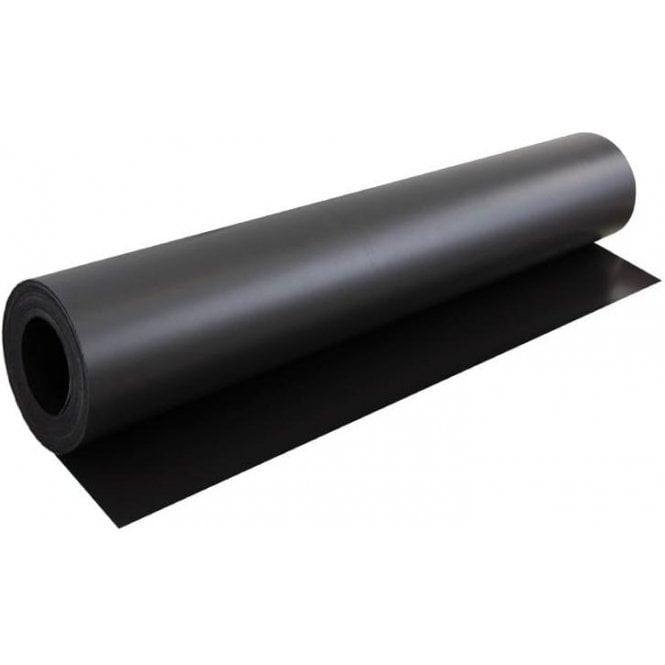

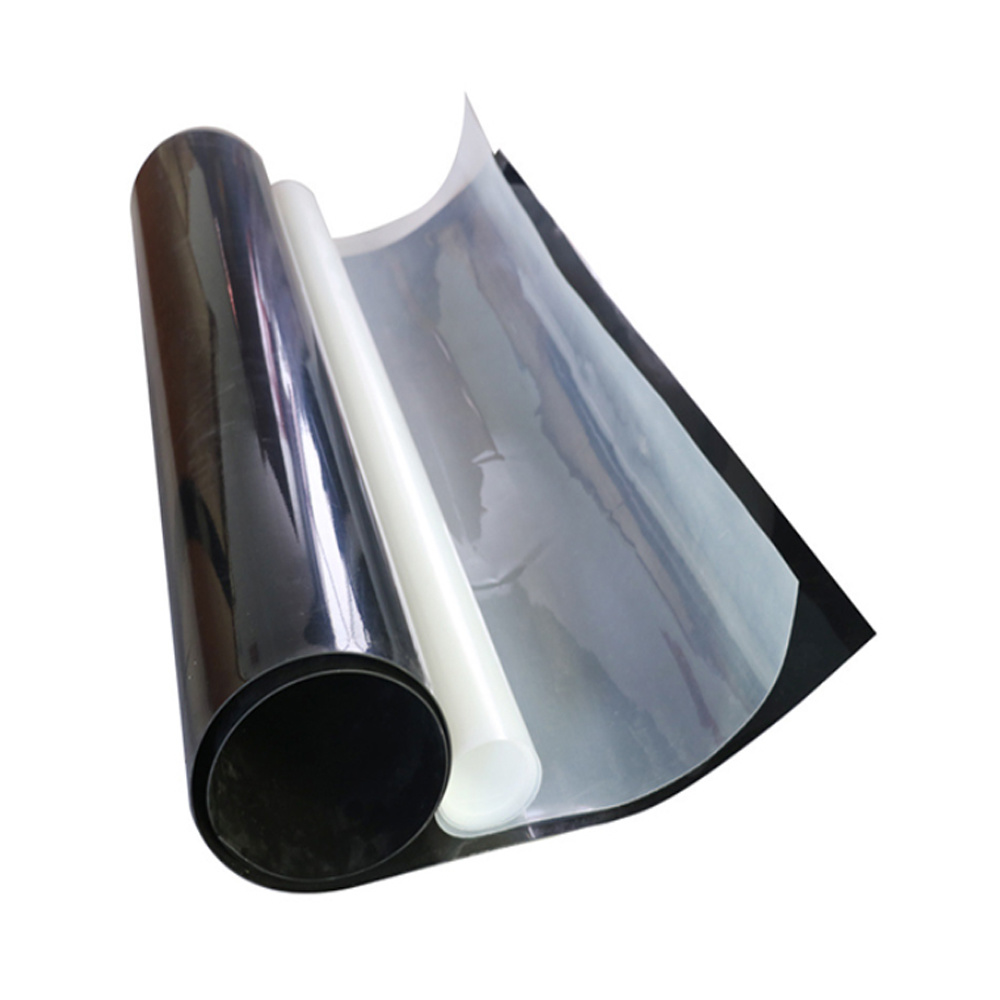

HDPE geomembrane for mining
HDPE geomembrane is produced through either a three-layer co-extrusion method or a calendering technique. This material acts as an outstanding barrier to water, rendering it a significant resource in engineering applications.
1. Excellent resistance to penetration, offering waterproofing, anti-seepage, and isolation features.
2. Remarkable resistance to chemical degradation.
3. Improved impact resistance and longevity against wear.
Product descriptions from the supplier
: HDPE Geomembrane
: TW（Taiwei）
: Shandong, China
: HDPE (High-density polyethylene)
: 0.2-3mm
: 1m-8m（Customizable）
: 50m-200m/Roll (Customizable)
: Black, White, Blue (Customizable)
: Woven bags（Please consult if you have other packaging requirements）
: ISO9001/ISO14001/ISO45001/CE-CCSD23010543609/CRCC
: Within 10 years （Based on actual product conditions）
: Online technical support, installation training, on-site guidance..
Product features
1. The HDPE geomembrane demonstrates outstanding chemical stability, highlighting its ability to resist strong acids, alkalis, and oil degradation. It serves as a durable anti-corrosion material.
2. The tensile strength of the HDPE geomembrane is exceptionally suitable, fulfilling the requirements of various high-standard projects.
3. The HDPE geomembrane shows significant resistance to local weather conditions and possesses anti-aging properties, allowing for prolonged use without a decrease in effectiveness.
4. The HDPE geomembrane guarantees dependable performance throughout its entire lifespan. It features substantial tensile strength and elongation at break, making it ideal for application in challenging geological and climatic conditions. Its flexibility in adapting to irregular geological features and its capacity to endure stress are particularly impressive.

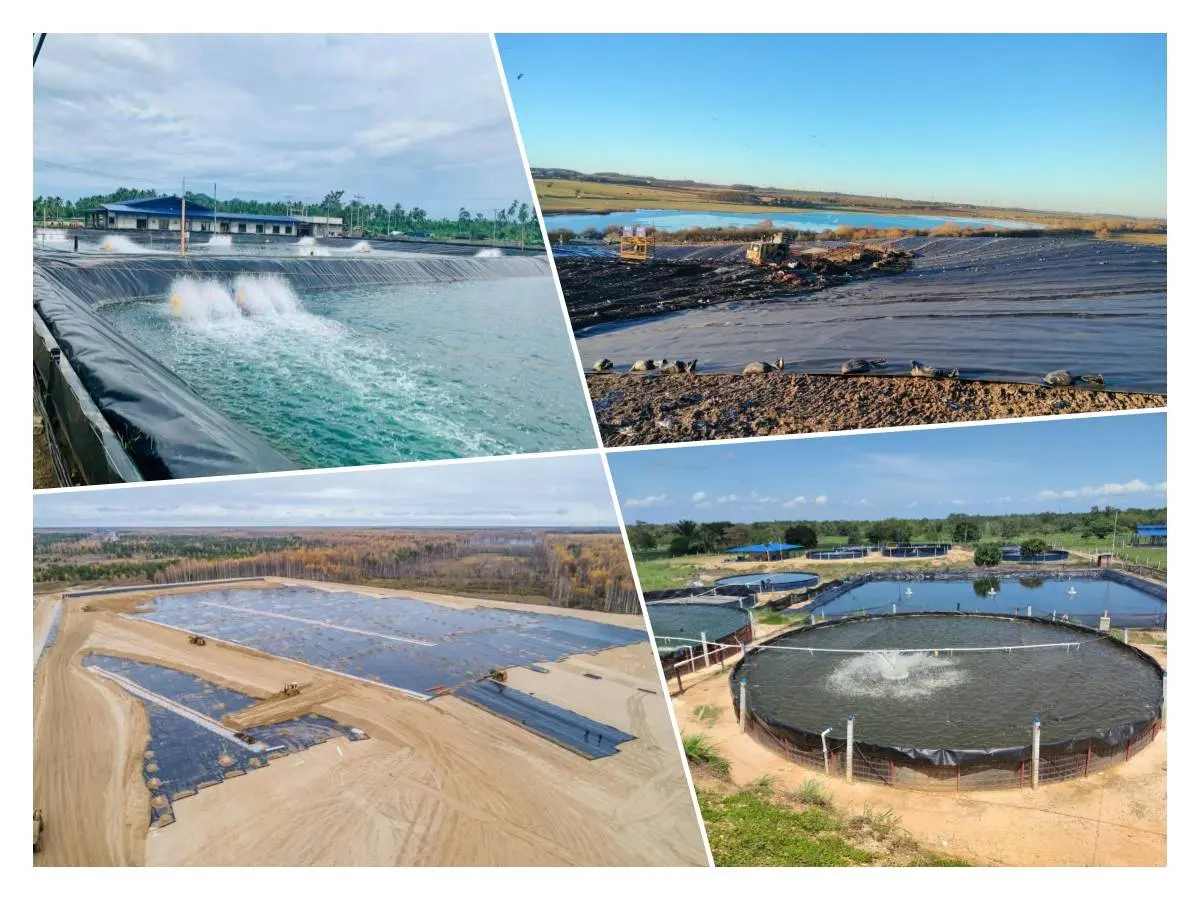

Product Application
1. Water management strategies: used for anti-seepage lining in reservoirs, channels, dams, rivers, and similar structures.
2. Environmental protection: applied as anti-seepage barriers in critical areas such as landfills, sewage treatment facilities, and chemical manufacturing sites to prevent the infiltration of harmful substances into groundwater or soil, thus significantly mitigating soil erosion and leakage.
3. Agriculture and aquaculture: employed for anti-seepage barriers in settings like swimming pools, fish ponds, and aquaculture facilities, which can greatly reduce water resource loss and enhance breeding efficiency.
4. Infrastructure: created for anti-seepage barriers in roadways, railways, airports, and various foundational projects, improving both aesthetic appeal and structural integrity.
Product indicators
| HDPE Geomembrane Technical Parameter (GRI GM13 ASTM Standard) | ||||||||||
| Spec Properties | Test method ASTM | GMS0.2 | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 | GMS3.0 |
| Thickness | D5199 | 0.2mm | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.94 |
| Tensile Properties (Each direction)(≥) • yield strength • break strength • yield elongation • break elongation | D6693 Type IV | 3 kN/m 5 kN/m 12% 700% | 8 kN/m 14 kN/m 12% 700% | 11 kN/m 20 kN/m 12% 700% | 15 kN/m 27 kN/m 12% 700% | 18 kN/m 33 kN/m 12% 700% | 22 kN/m 40 kN/m 12% 700% | 29kN/m 53 KN/m 12% 700% | 37kN/m 67kN/m 12% 700% | 44kN/m 80kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 25N | 64N | 93N | 125 N | 156N | 187N | 249 N | 311 N | 374 N |
| Puncture Resistance(≥) | D 4833 | 64N | 160N | 240N | 320 N | 400 N | 480N | 640 N | 800 N | 960 N |
| Stress Crack Resistance (≥) | D 5397 | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr | 500 hr |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time(OIT)(≥) (a)Standard OIT ——or—— (b)High Pressure OIT | D 3895 D 5885 | 100min 500min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min | 100 min 500 min |

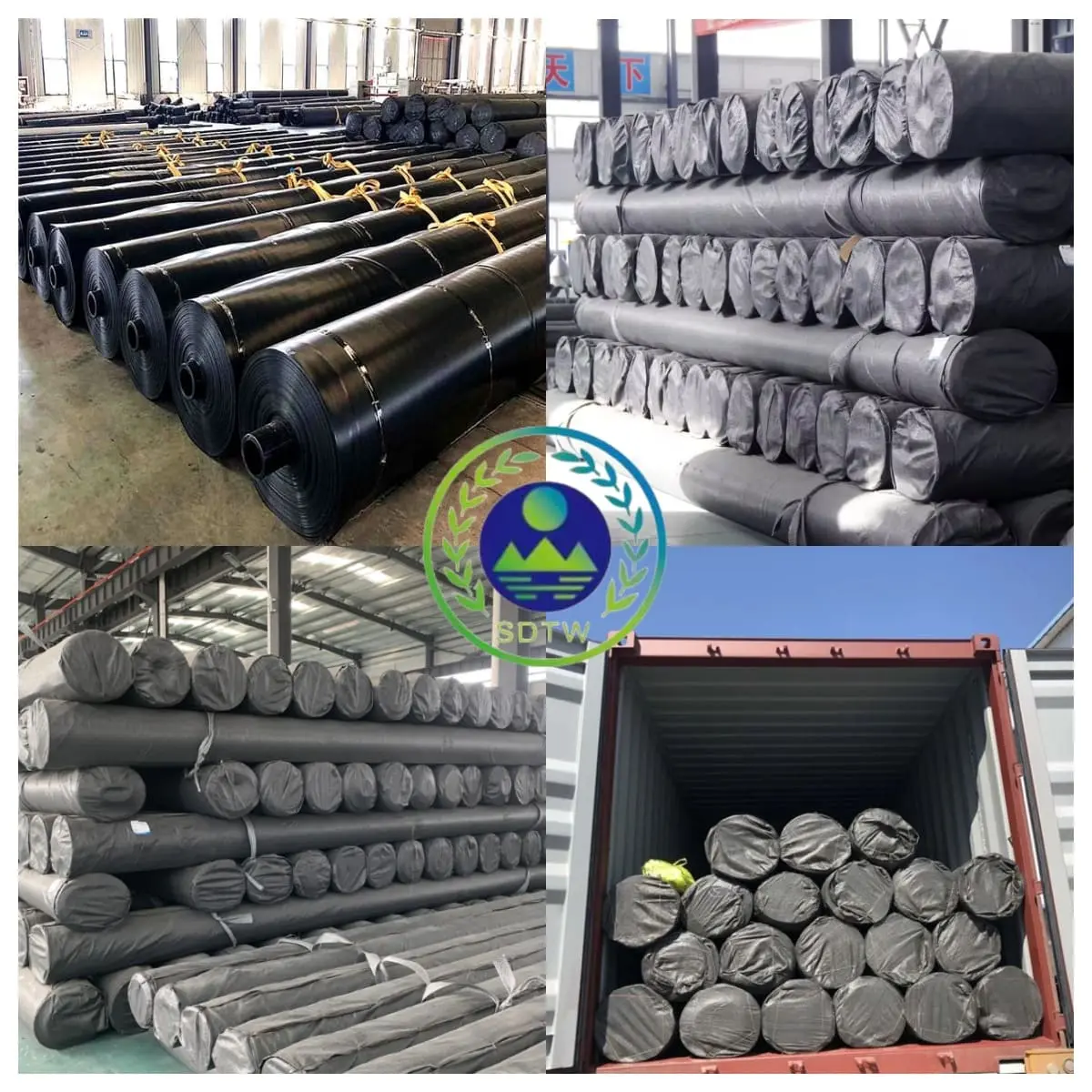

Packaging and Transportation
